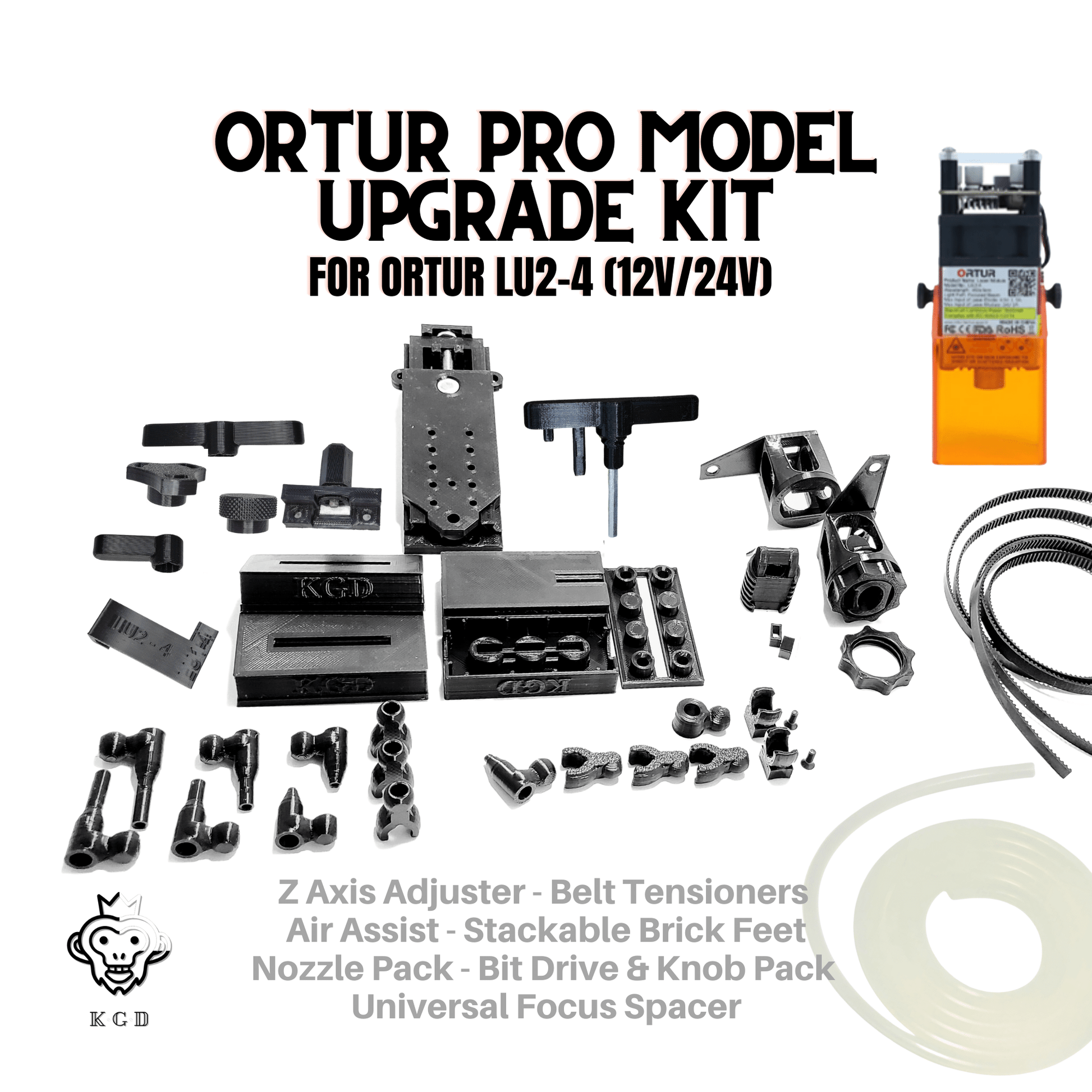

This is the Ultimate Upgrade Kit for your Ortur Laser Master 2 PRO MODEL laser engraver. Have you been piecing together all of your upgrades for your LM2 Pro? We put them all in one package so you can take an already great laser and take it to its limits.

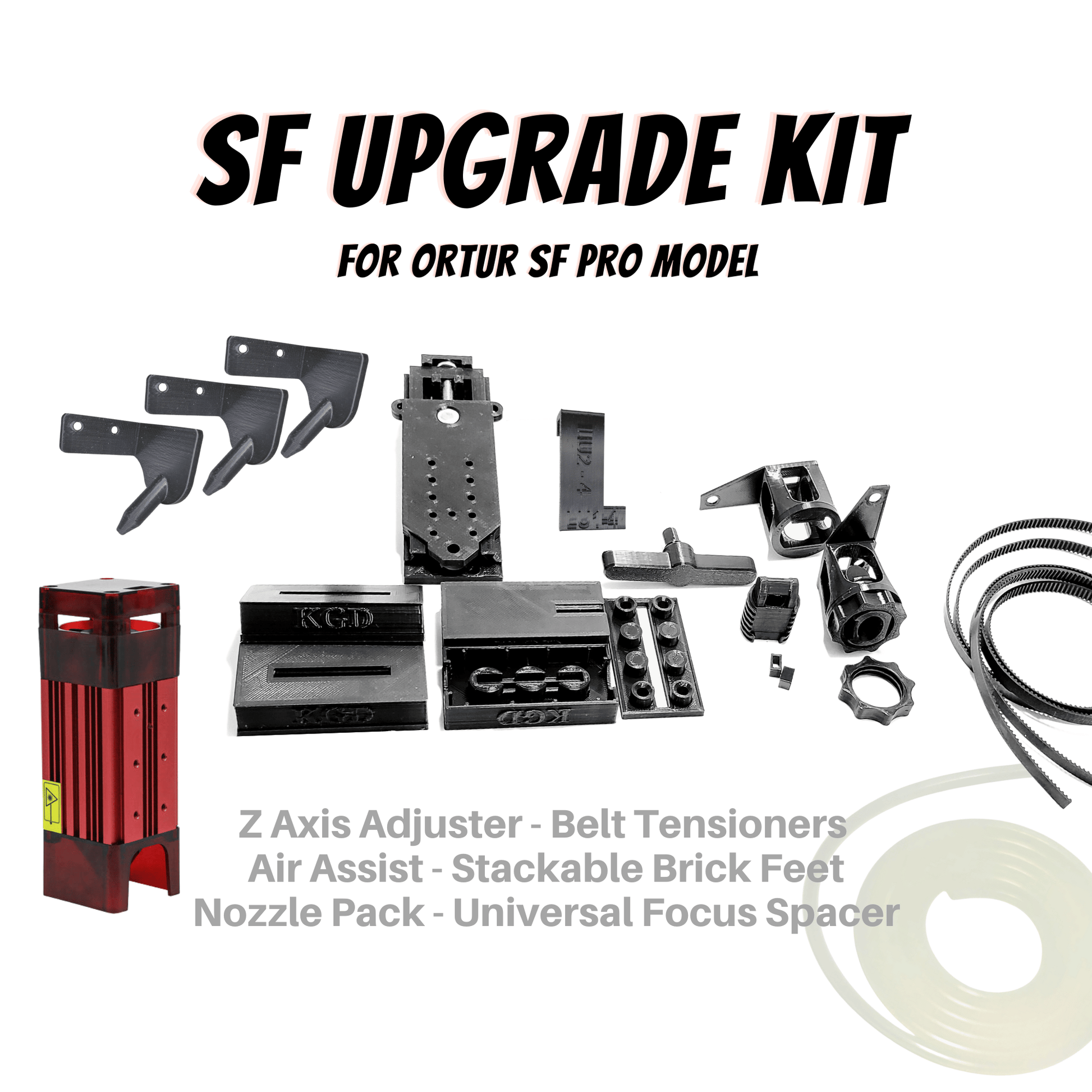

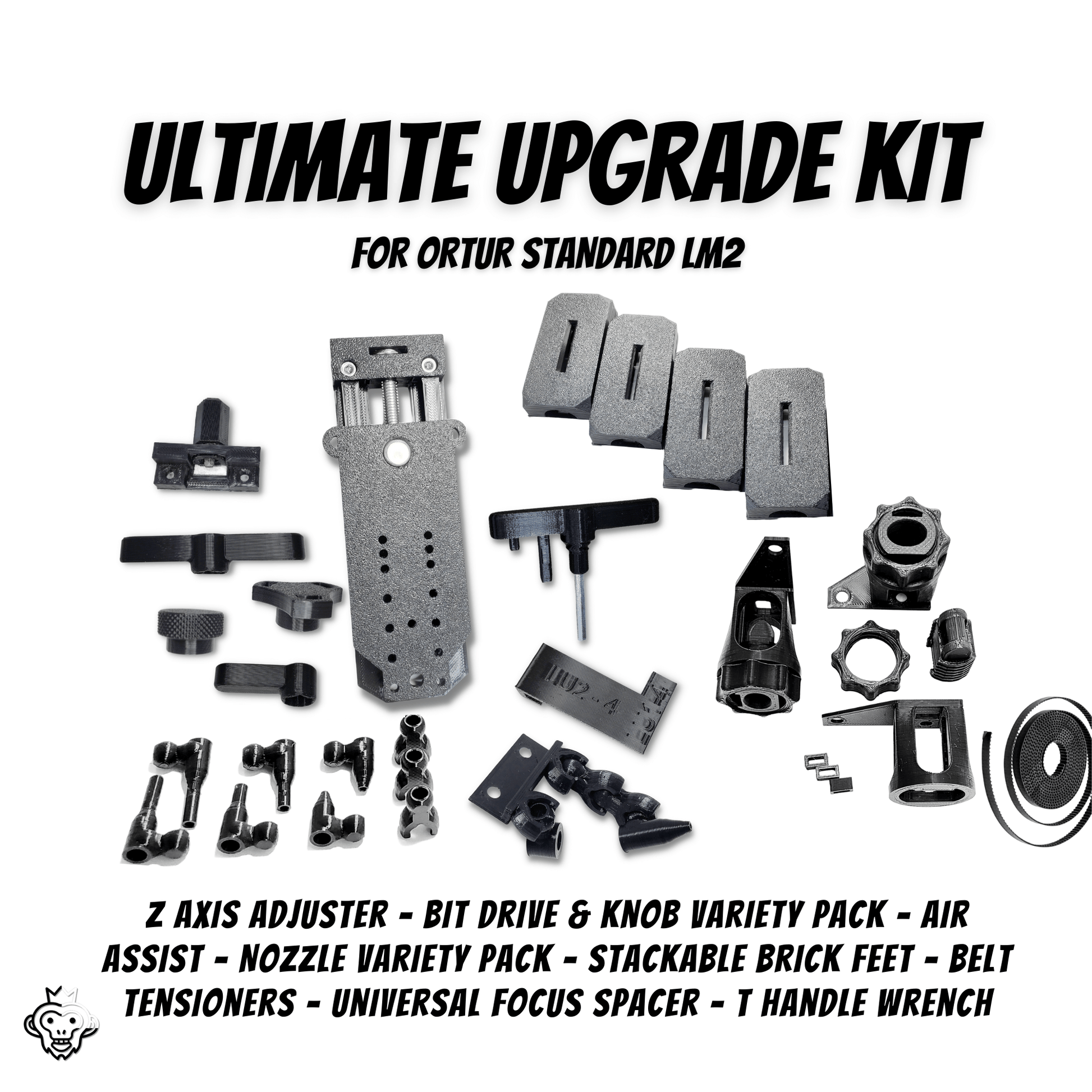

In this kit KGD has included:
- Bottom Mount Air Assist (with 6 feet of air hose - optional)
- Z Axis Adjuster Kit
- Belt Tensioners (with 2 upgraded belts - optional) for your Y Belts
- Stackable Brick Feet that retain and Raise and Lower your laser's frame.

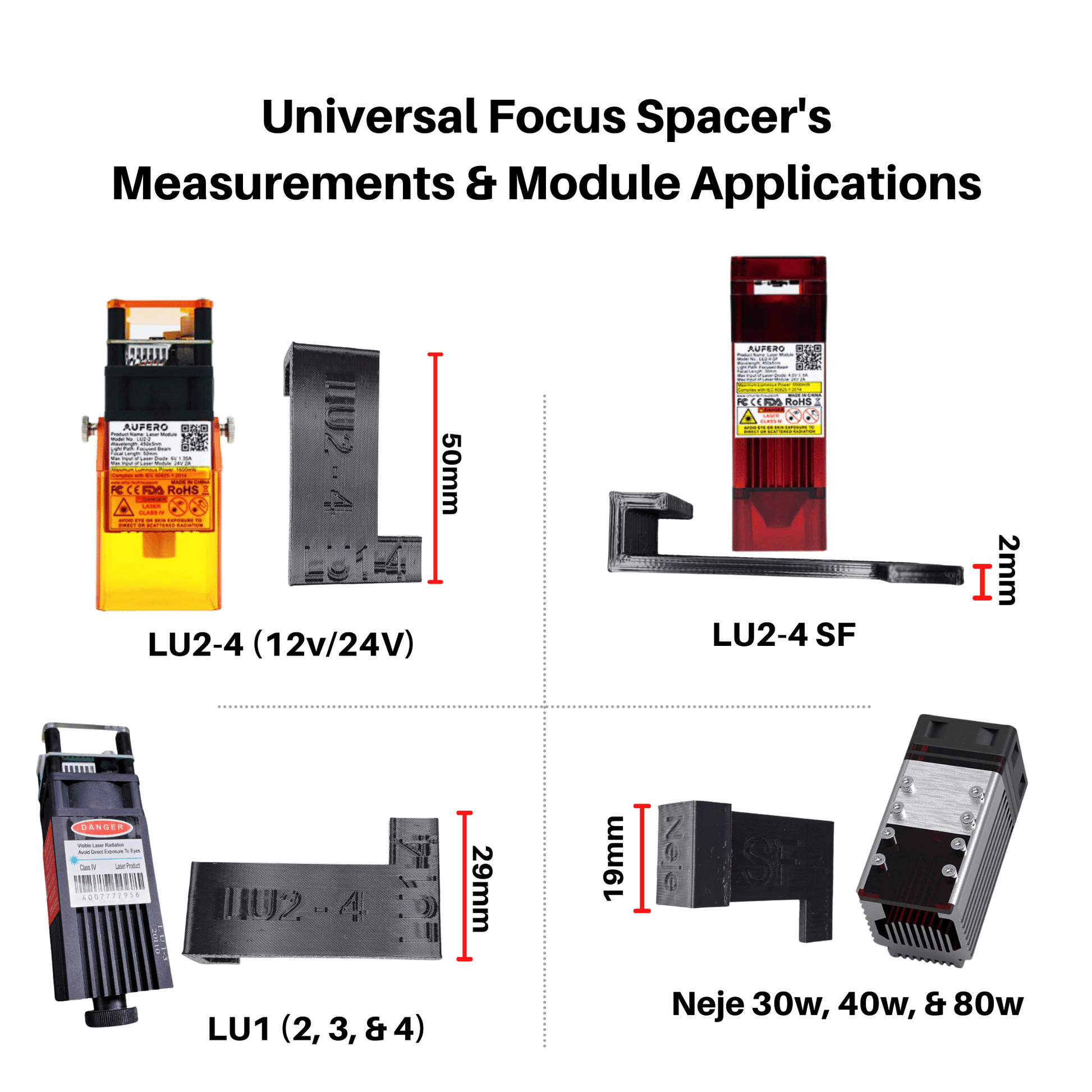

- Focus Spacer
- T-Handle Wrench (and tool holder for your frame)

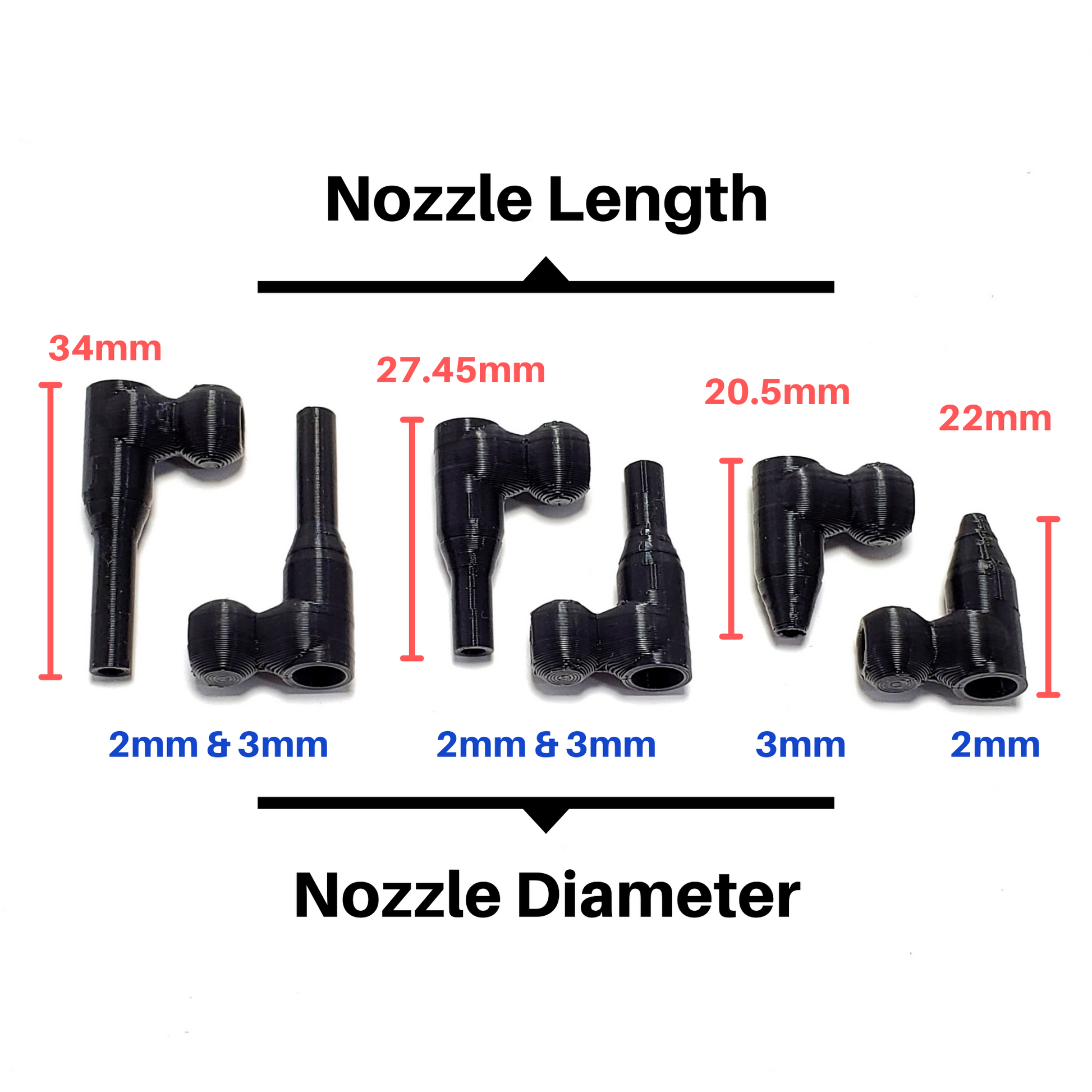

- 6 pack Nozzle Package (see image for sizing)

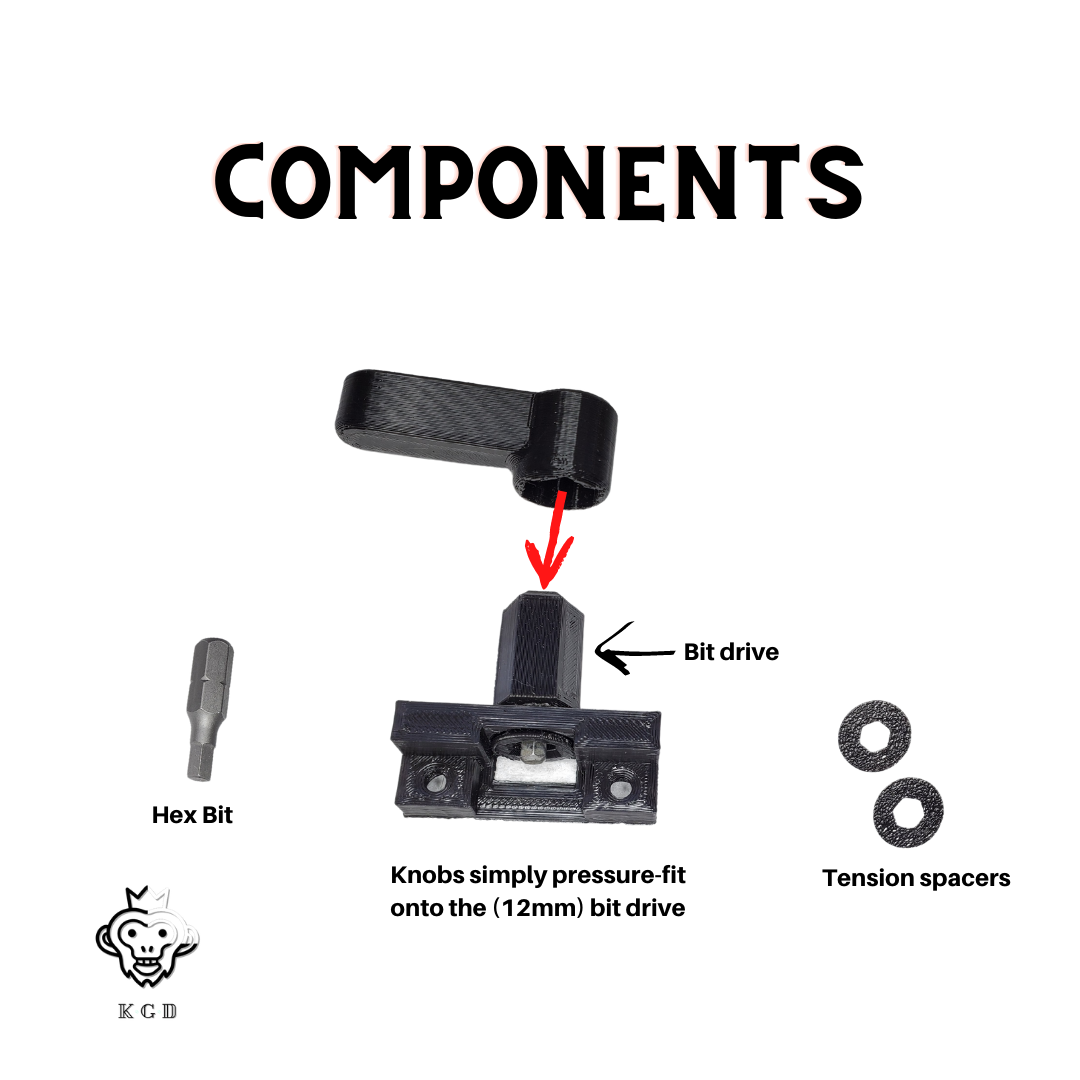

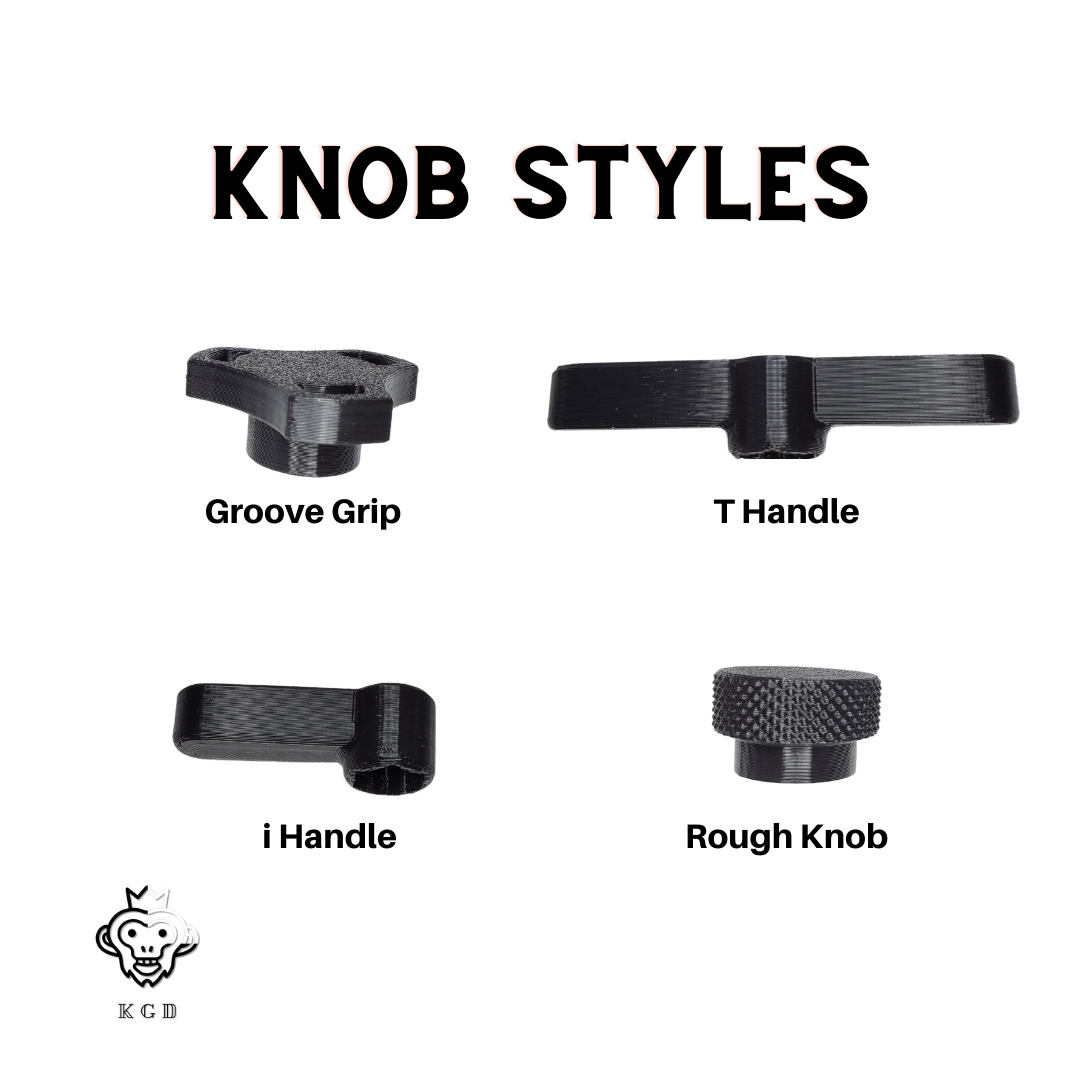

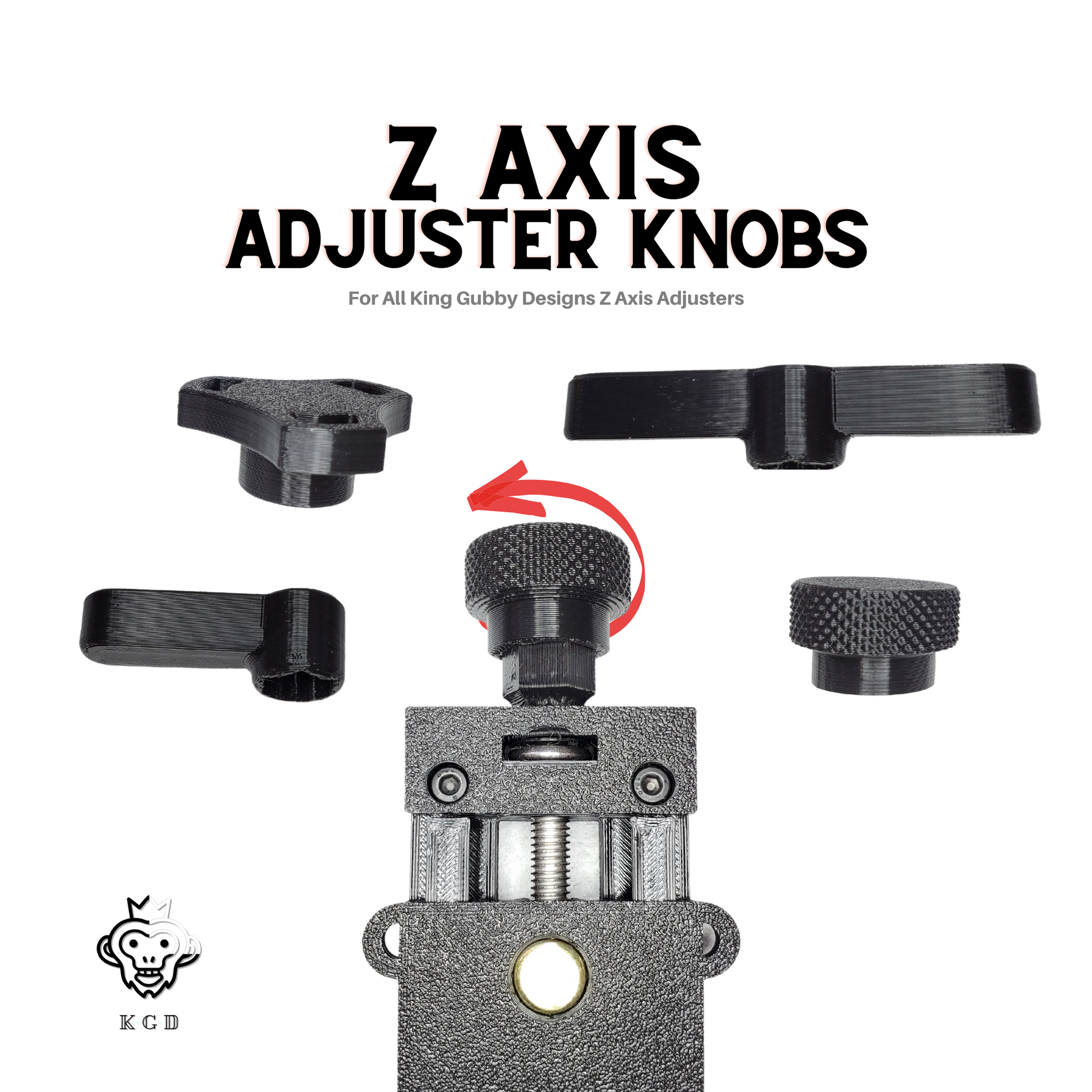

- Bit Drive & Knob Variety Pack

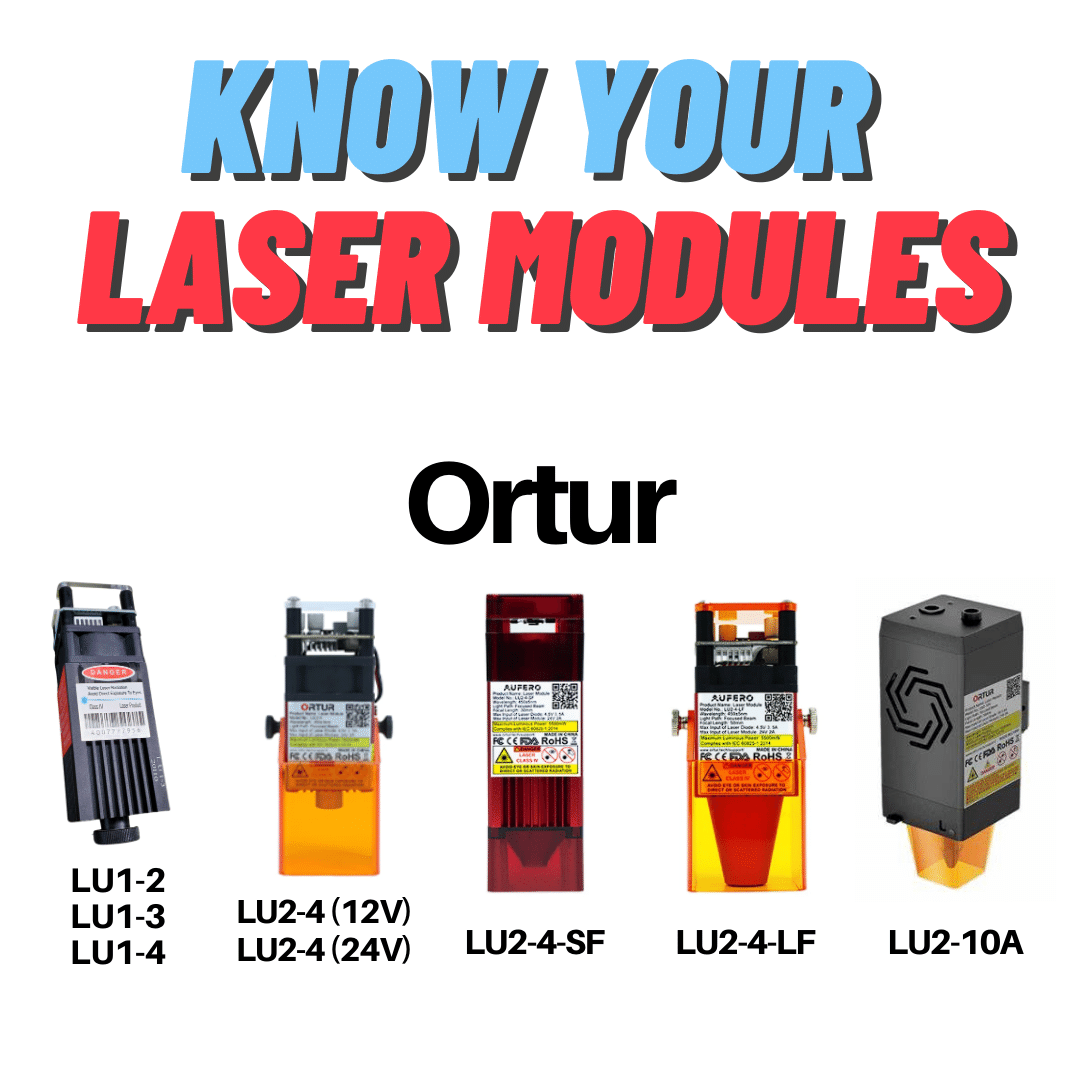

**THIS KIT IS FOR THE ORTUR LASER MASTER 2 PRO MODEL (LU2-4 12V & 24V & SF), THOUGH WE HAVE MADE IT AVAILABLE TO PURCHASE THE STANDARD MODEL KIT AS WELL, JUST MAKE SURE YOU HAVE THE CORRECT OPTIONS FOR YOUR KIT ENTERED
OR - Standard LM2 Ultimate Kit can be found here
You can find the air pumps that are needed for the the air assist here:
https://kinggubby.com/products/aquavita-air-compressor-38l-mi
Item Descriptions
-------

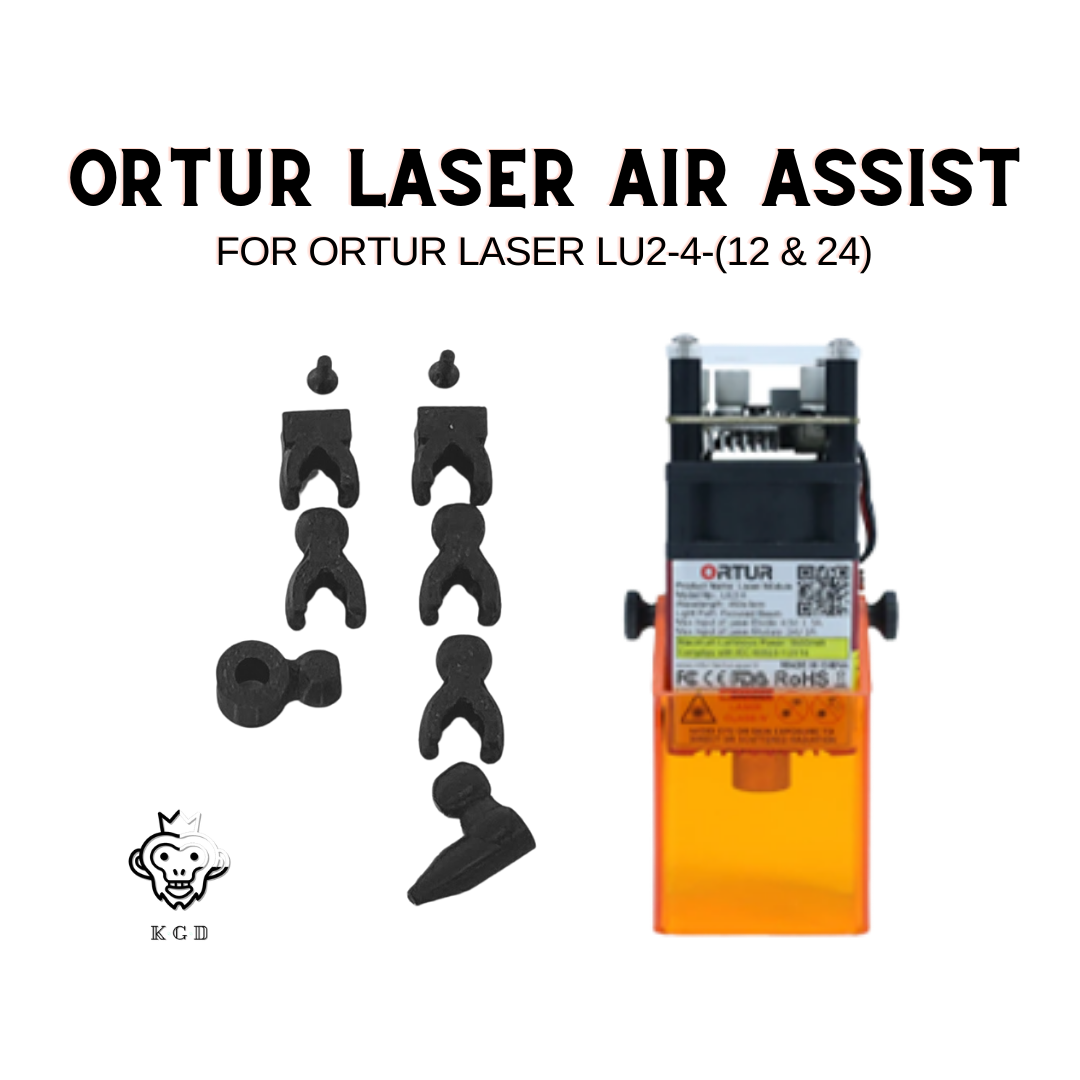

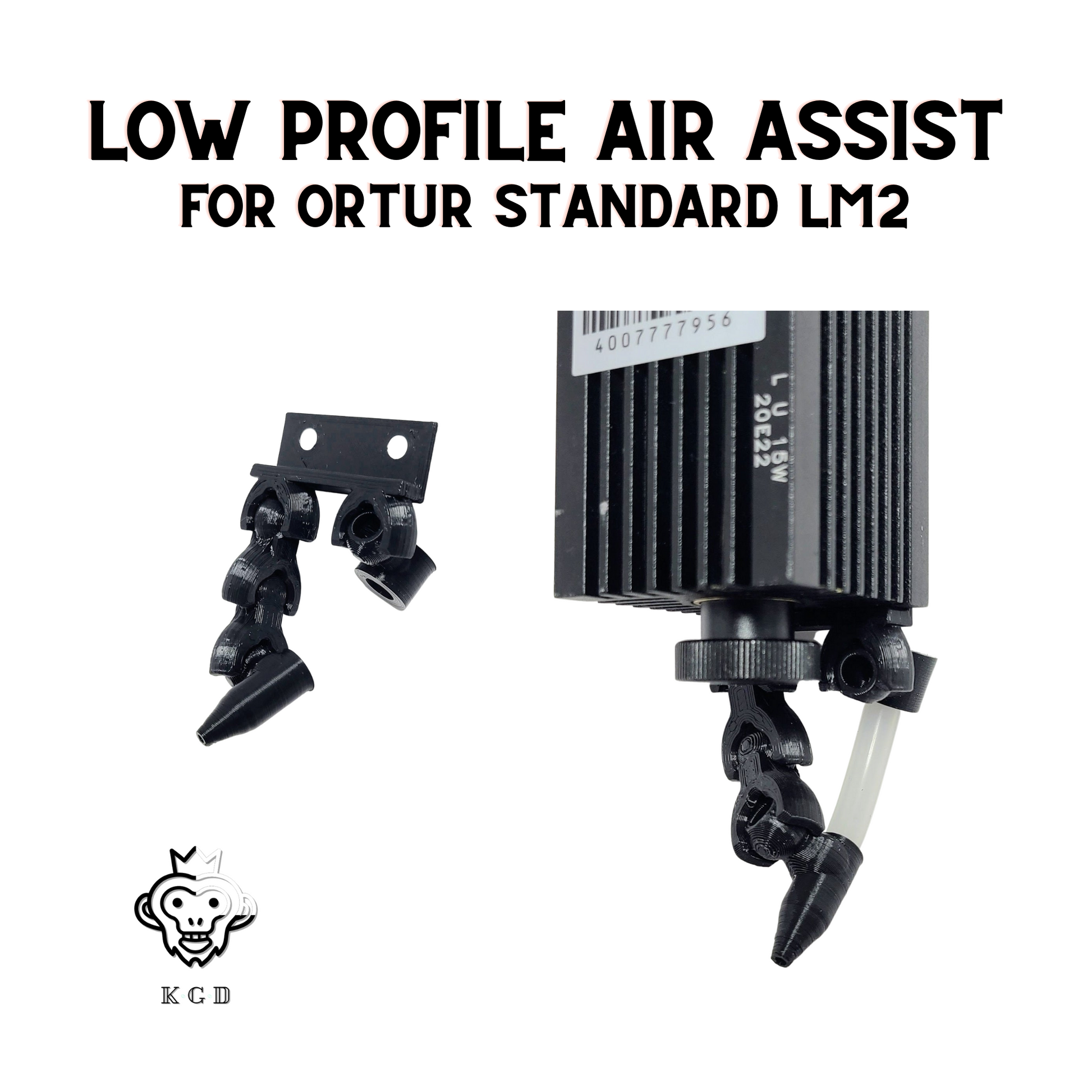

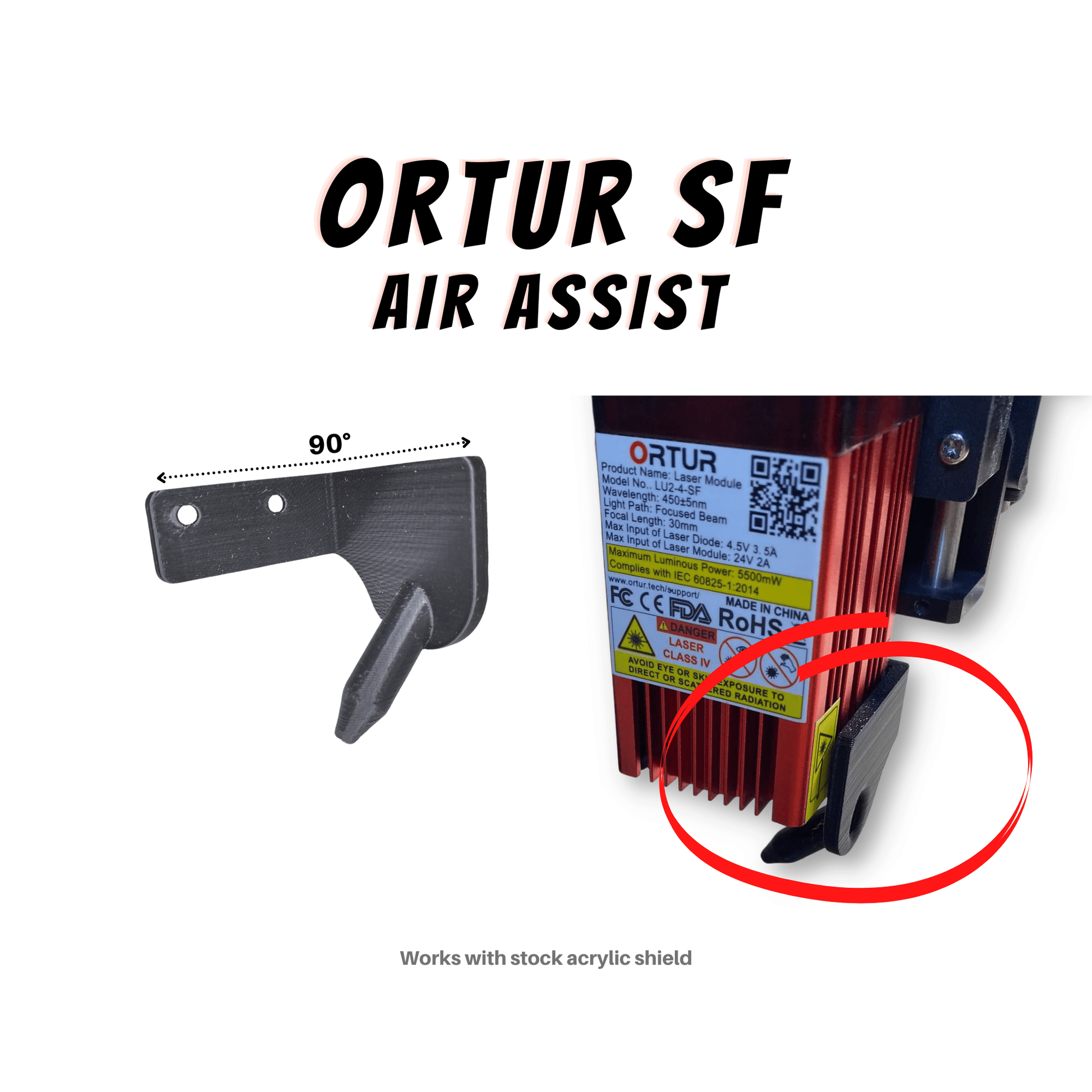

Bottom Mounted Air Assist (or SF Air Assist)
Simple and slim. This air assist takes up almost no real estate on your module. It conveniently attaches to the already existing threaded holes in the bottom of your Laser Master 2 Pro Model module.
Ortur Laser Master 2 Pro only. This will not fit the regular LM2 modules as they do not have the holes on the bottom. If you are looking for an air assist for the regular LM2 model, please see our other listings.
Get deeper cuts by removing the debris with our air assist. Cleaner engravings and overall better performance. If you have shop air, we recommend between 20-25psi. Small pumps will show great improvement as well but not as good as the larger pumps.

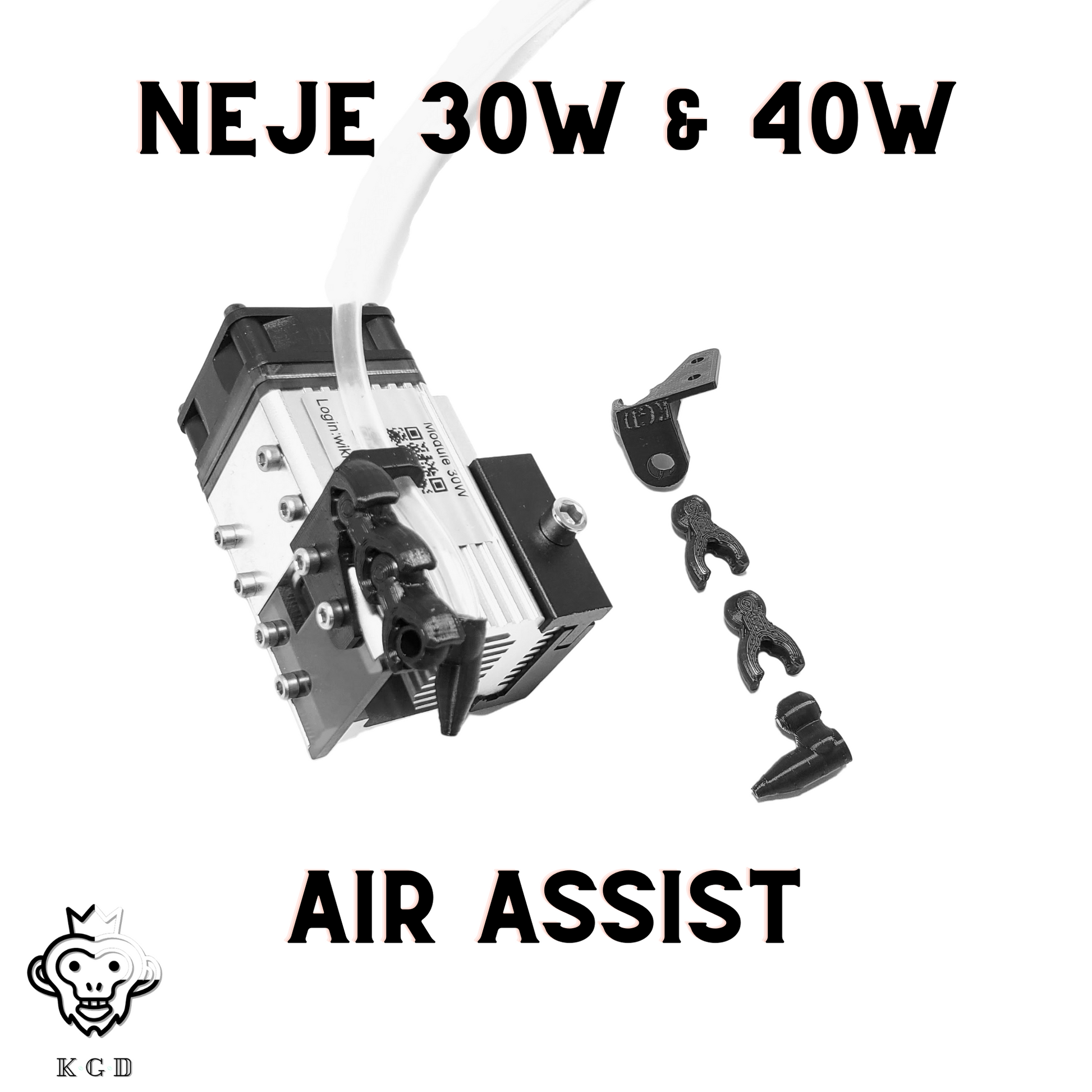

ALSO - Neje 30W, 40W, & 80W modules can be found on Amazon. With our Z Axis Adjuster, you can attach your Neje module without having to buy their frame. It will attach right to your Ortur frame. Make sure your power supply and module use the same voltage!

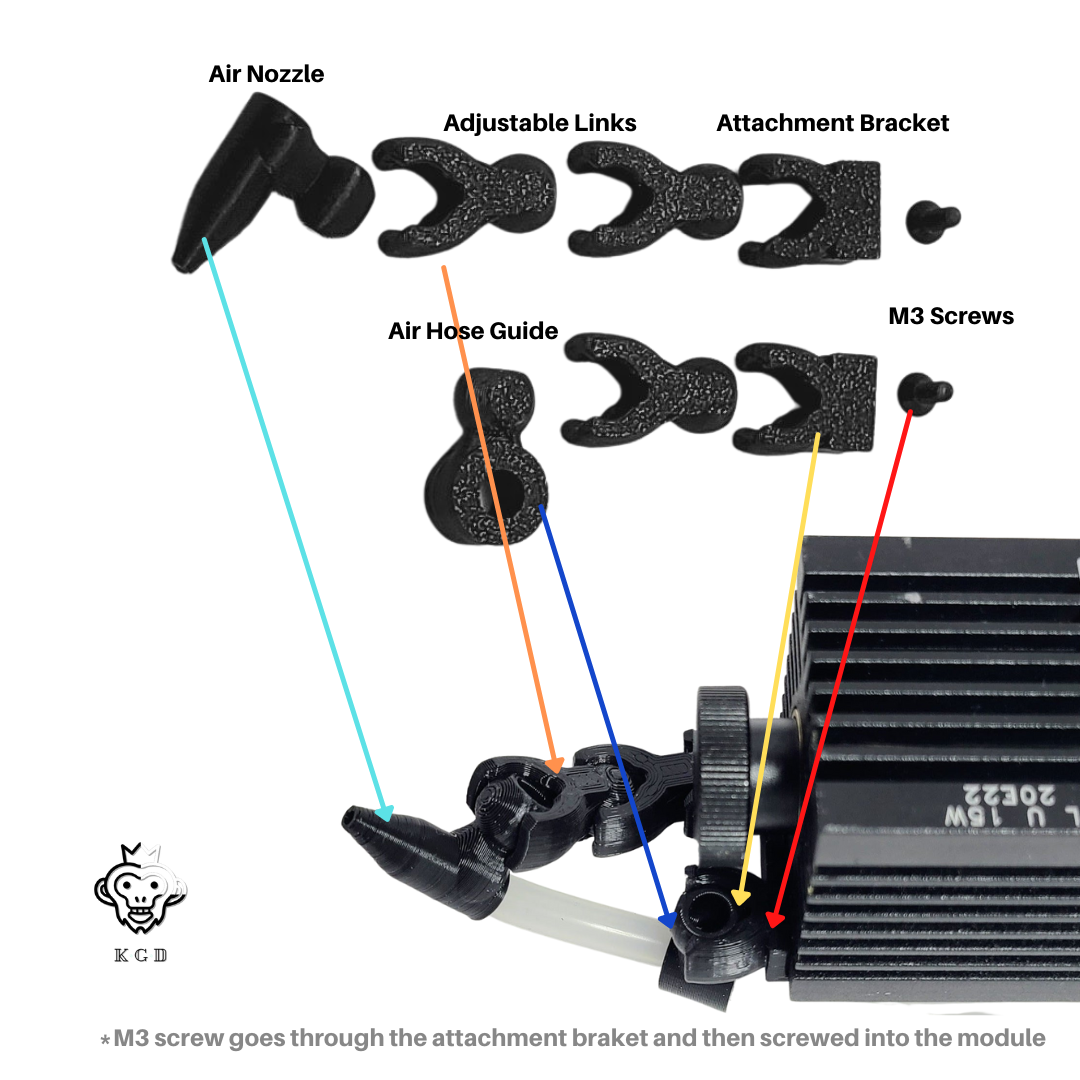

Install:
-Fasten both attachment brackets to the module's threaded holes with the provided M3 screws
-arrange and fasten in all of your adjustable links, hose mount, and air nozzle
-Install your 6mm hose (sold separately)
-Guide hose up to the stepper area
-Secure hose with zip ties to the wire loom
-Place Nozzle at 45 Degrees 2-3mm from laser dot on workpiece.
-----

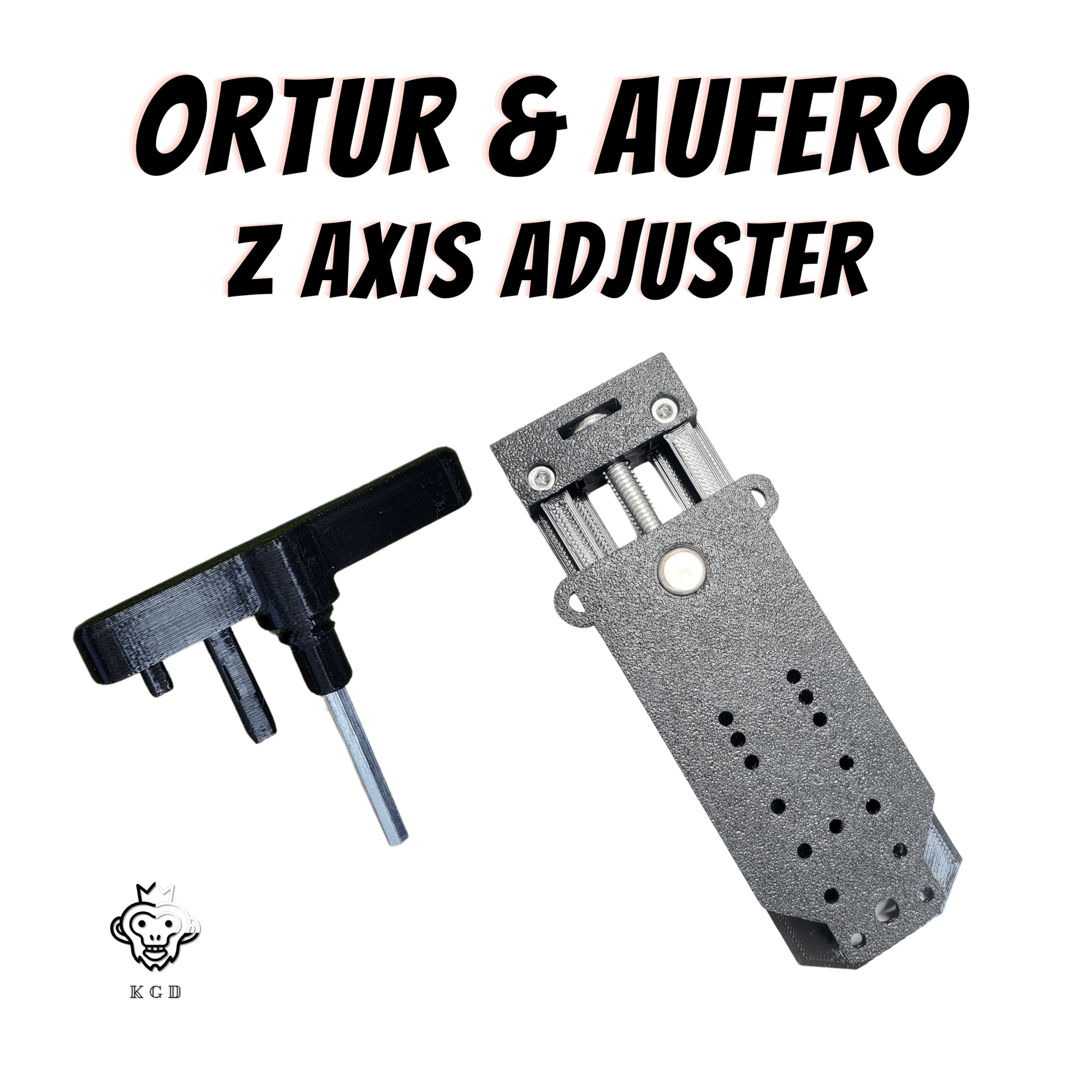

Z Axis Adjuster
Ortur PRO MODEL Z Axis Adjuster - Works with Ortur Laser Master 2 Pro Model Only
Gives you 40mm of Z travel for quick and easy focus

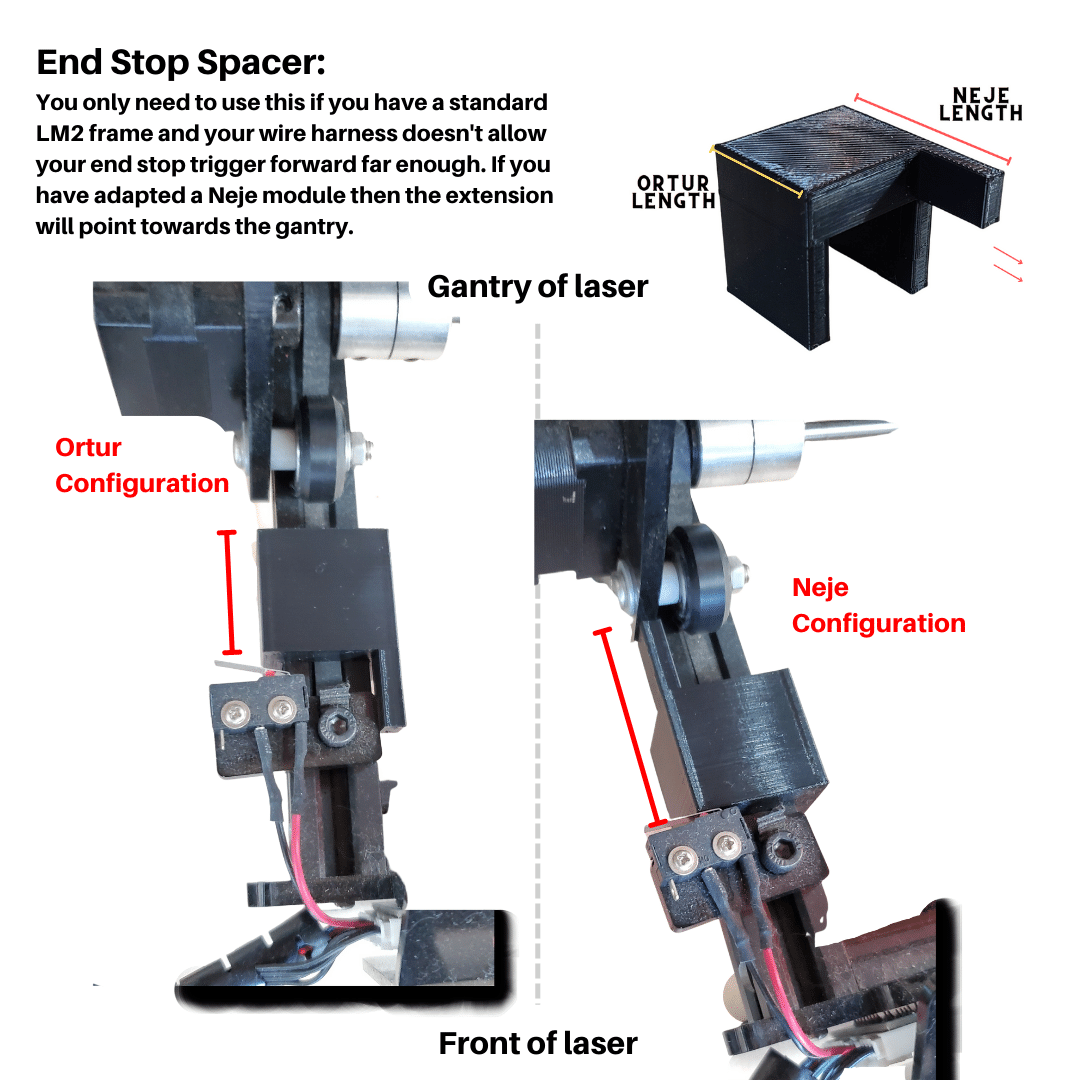

YOU MAY NEED TO ADJUST YOU END-STOP and we recommend moving the end stop before running your laser.
Uses 4mm allen wrench to adjust, includes T-Handle wrench which hangs on your laser's frame.
Install:
-Entirely disassemble the z axis adjuster, if it came assembled
-Remove the dovetail pieces from both your carriage and module
-Replace those pieces with the printed counterparts and slide it together on the machine
-Insert barrel nut and drop M5 bolt through hole in the top of the carriage plate
-Attach the bolt lock clip over the bolt head
-----

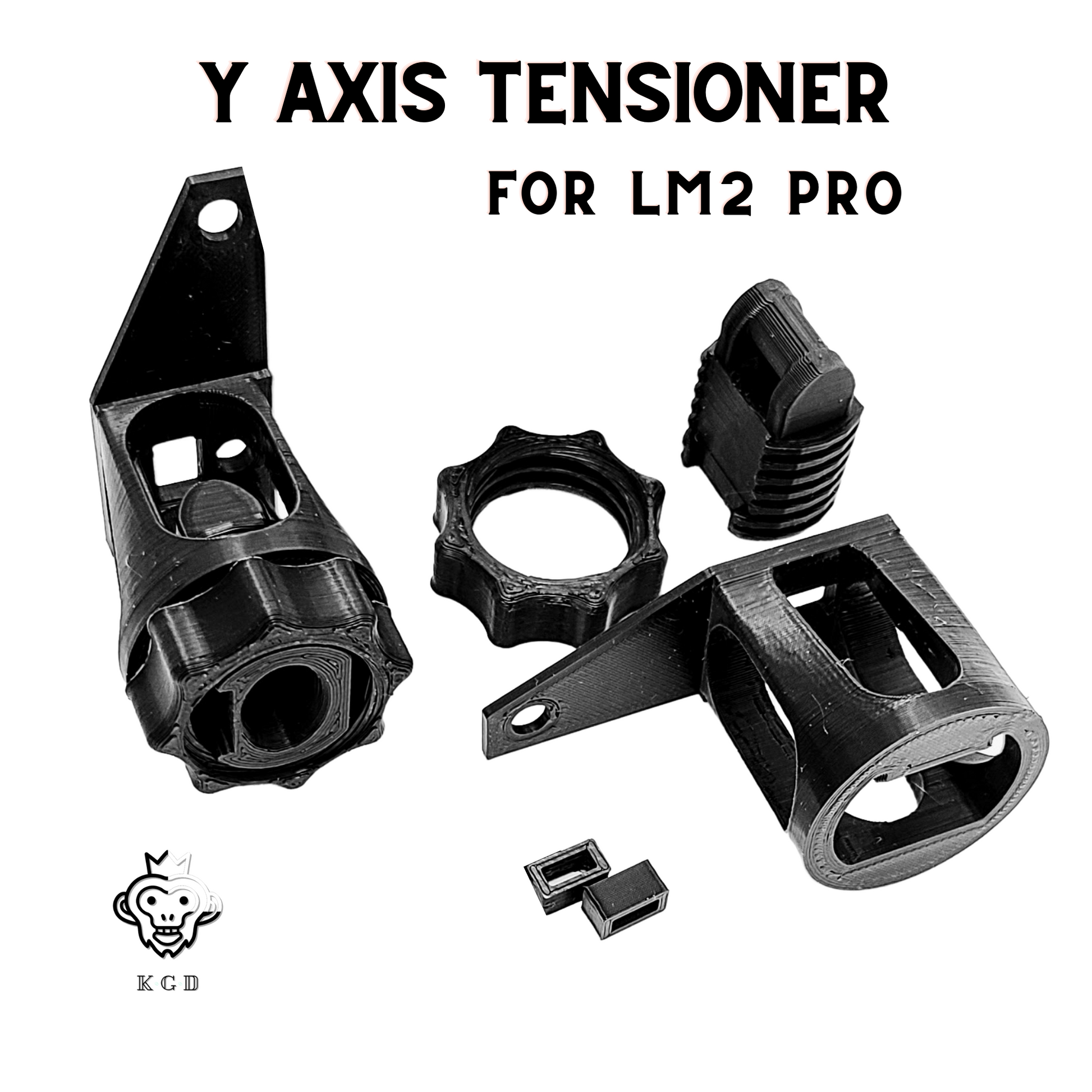

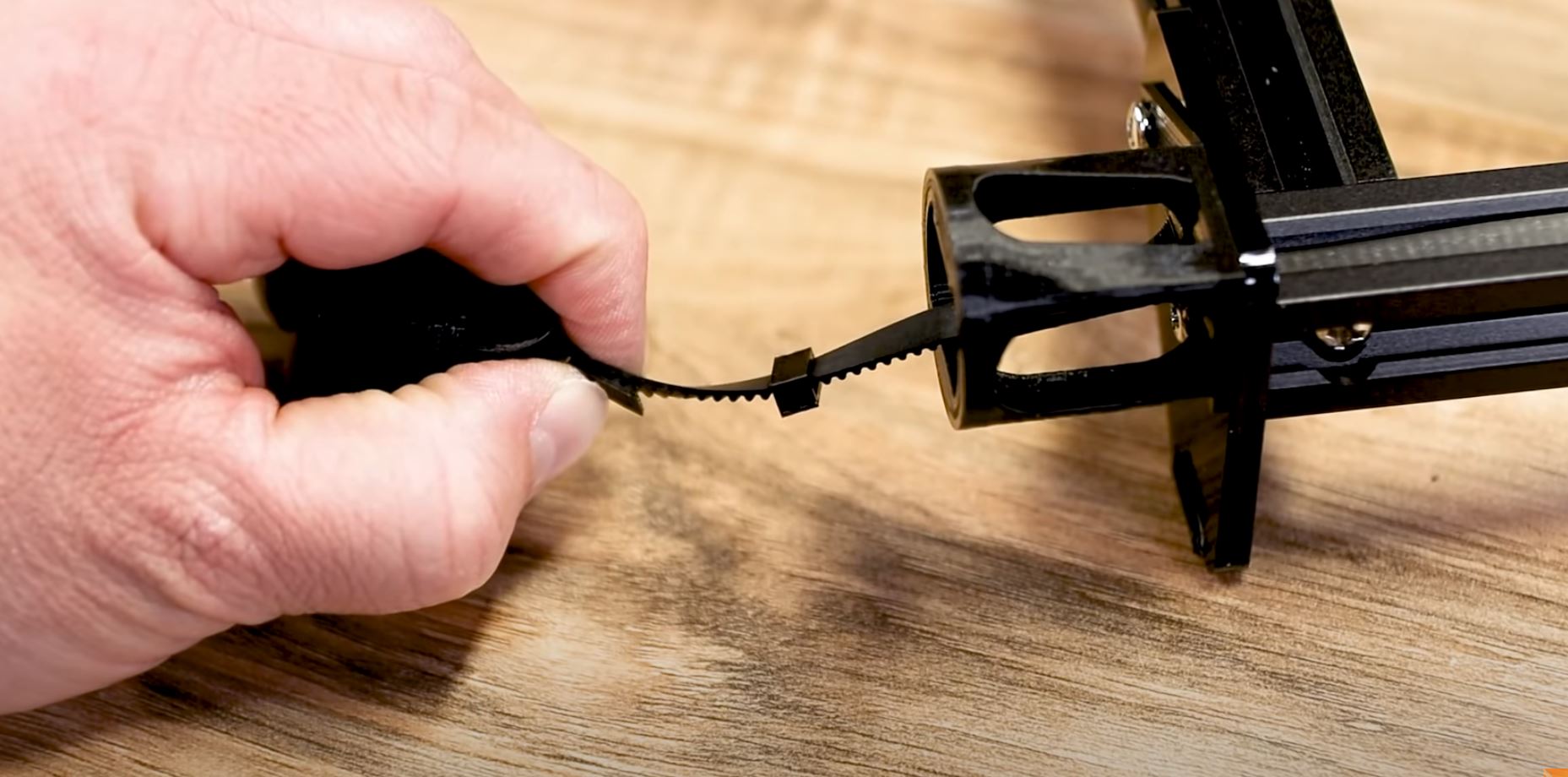

Belt Tensioners
This set of (Y) belt tensioners for the Ortur Laser Master 2 Pro lets you adjust the belt tension on your LM2 Pro Model.
Finally, you can achieve perfect tension :)
Hand tighten or hand loosen the threaded knob to make adjustments.
You may need to replace your belts with longer belts, to see if your belts are long enough. You need to remove the washers that previously Locked your belt on the side that you install the tensioners
Y belt needs to be at least 660mm
These are the minimum if you are cutting belt off a roll leave a little extra
The belts that we sell as an add-on to this product are GT2 timing belts that are 6mm wide.
DO NOT OVER TIGHTEN YOUR BELTS!!!
Please refer to "Belt Tension" by RF of youtube - Belt Tension - YouTube
-----

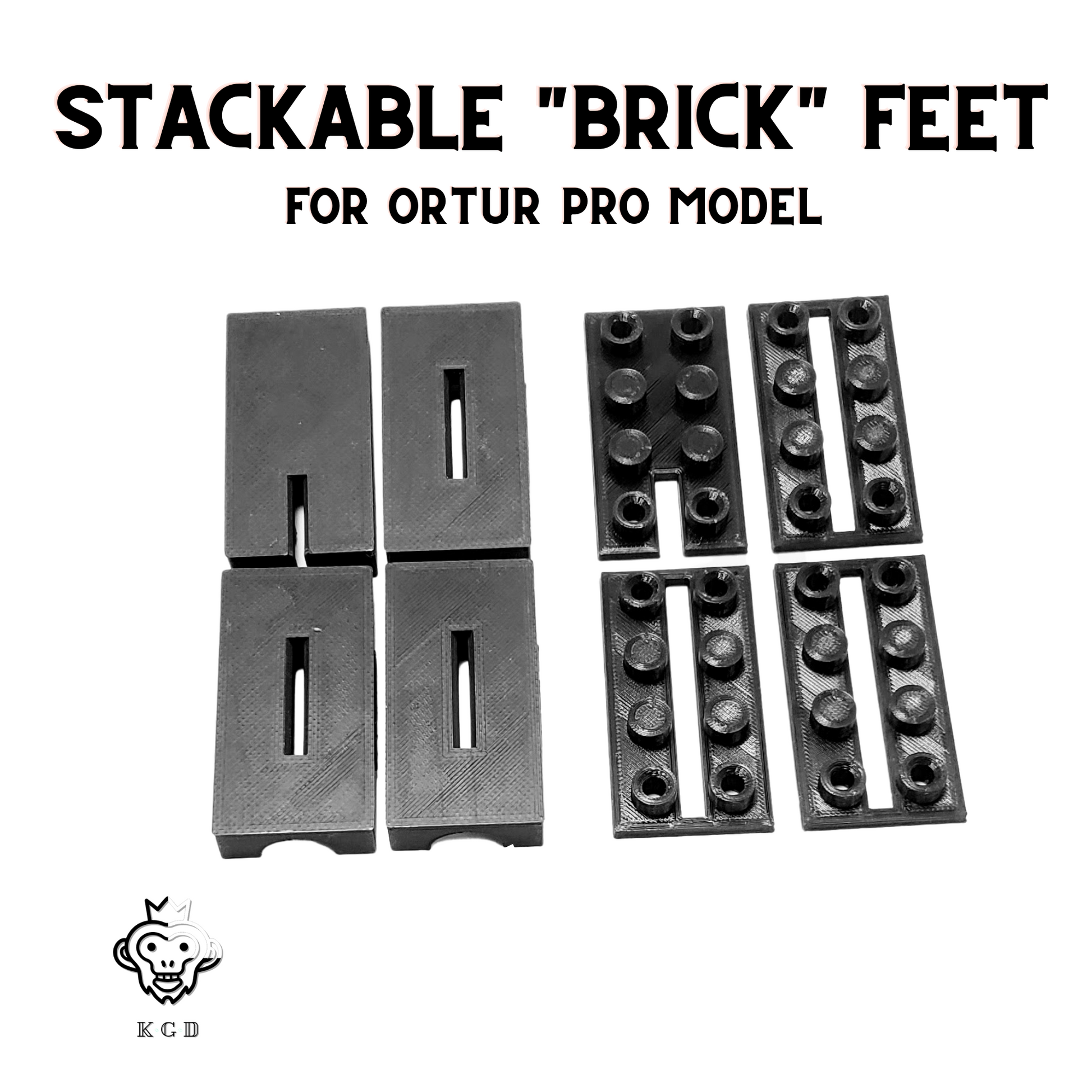

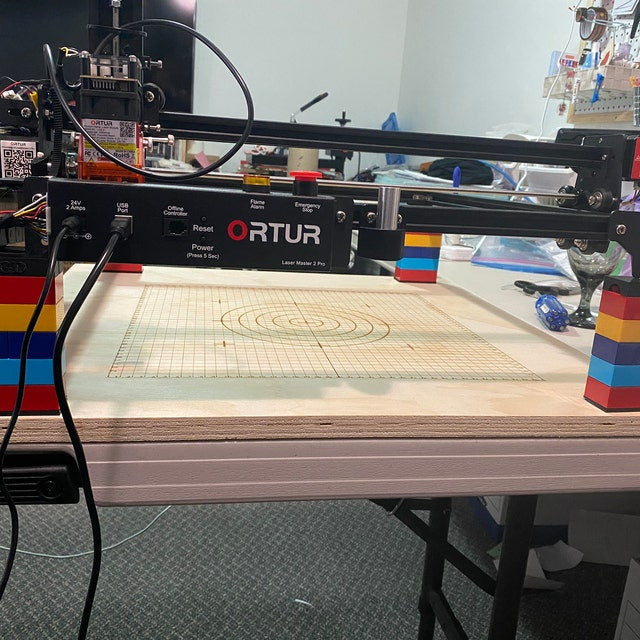

Stackable "Brick" Feet

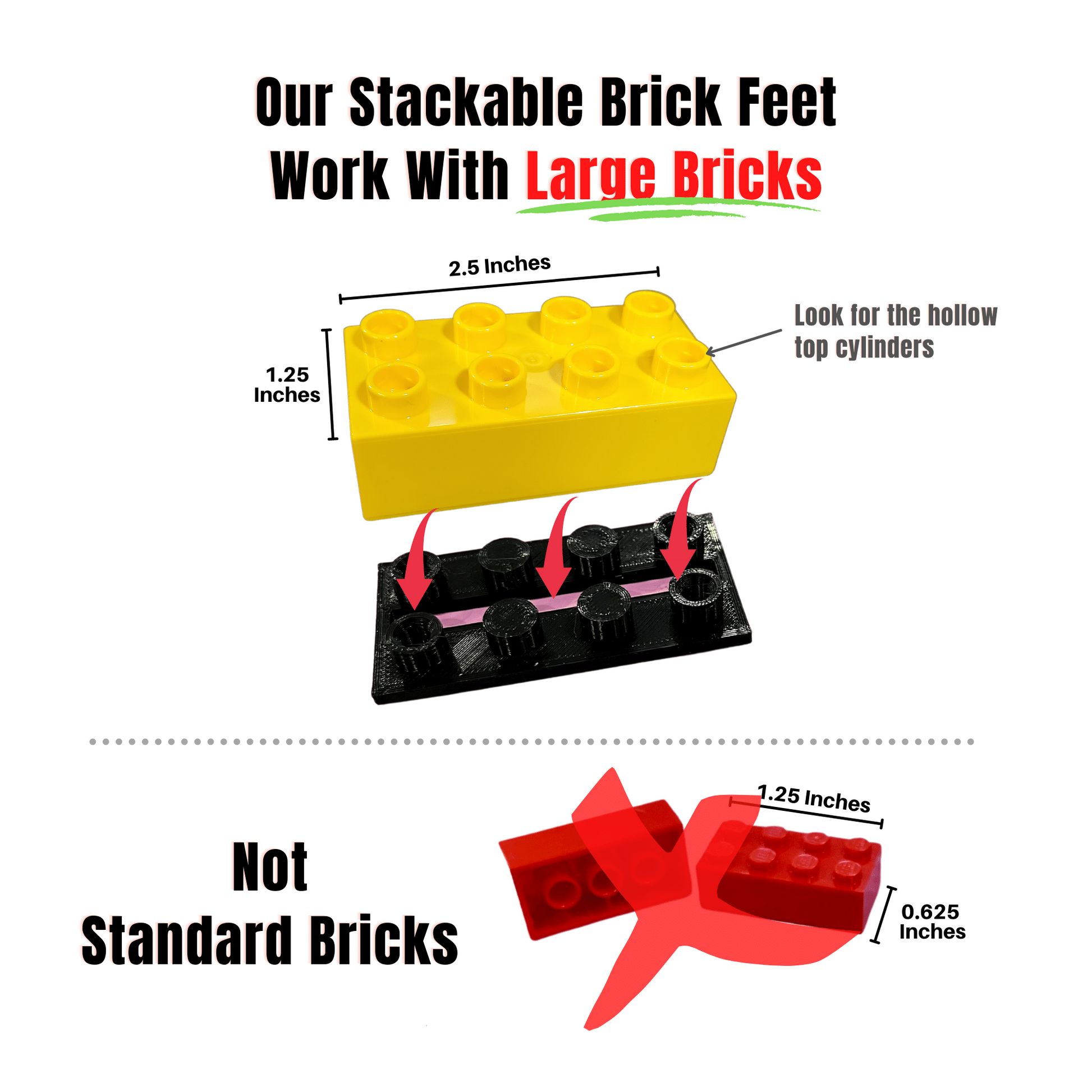

Secure your Ortur Pro Model laser engraver's acrylic feet while easily raising and lowering the height of your entire laser. With our stackable "brick" feet, just add or subtract Duplo Lego blocks to change your laser's height as needed. Super simple to use and compatible with the Duplo Lego 2x4 bricks that your child has lying around their room. Please refer to image about Lego brick sizing.
Watch the video here (the video is for the pro model bricks but shows the overall install and utility of all of our Brick Feet products).
Uses 2x4 blocks (Lego Bricks not included) These work with the large style bricks.
Set of 4 feet

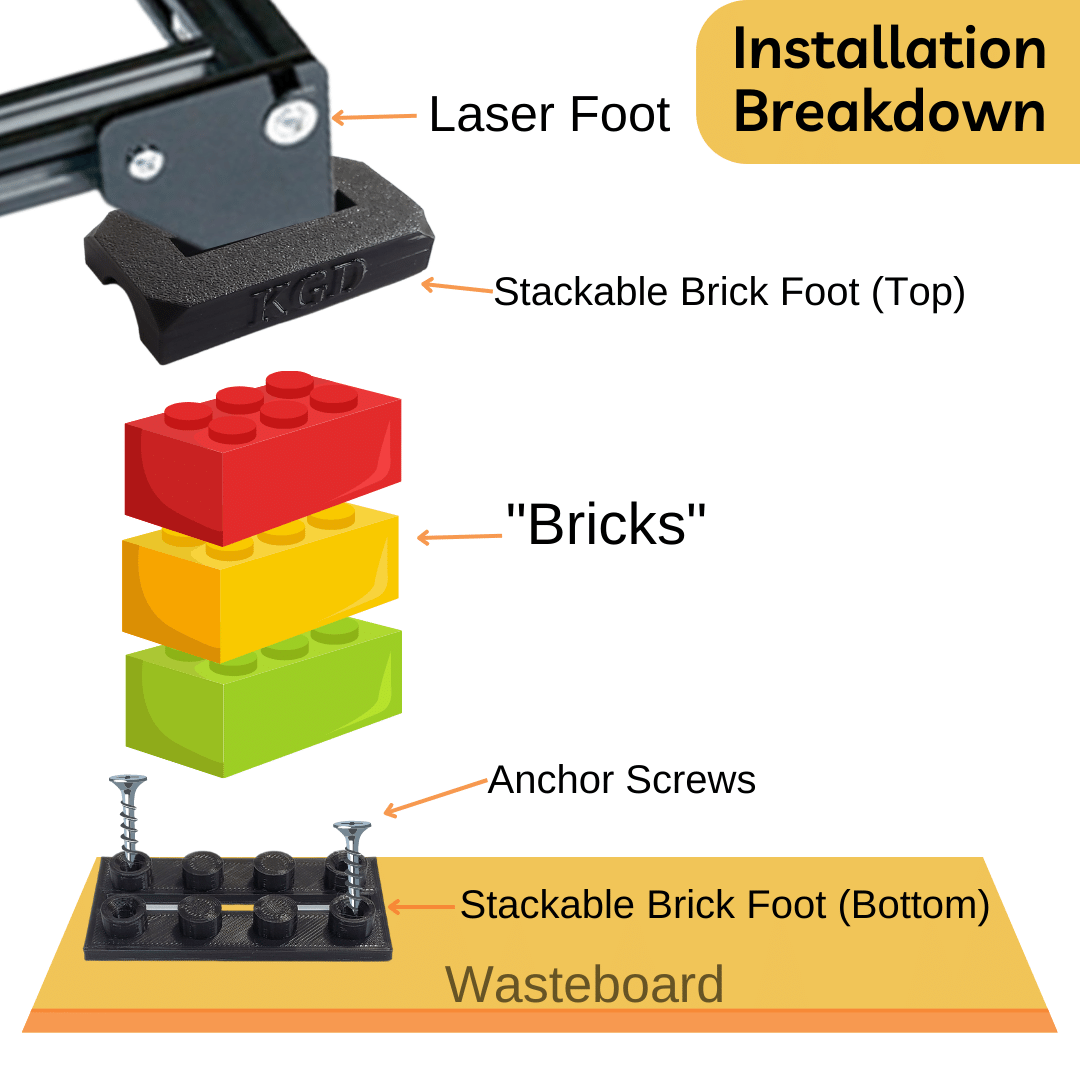

Screw bottom plates to your table or surface, add blocks/bricks to the top until you reach the desired height. Make sure all four brick stacks are even and place KGD branded top brick on top. Then place your PRO MODEL Ortur Laser Master 2's stock feet into the slits on the top.
The holes on the outside of the feet are 4mm and the 4 inside holes are 3.8mm in diameter and the plate is 3mm high
NOTE - STACKABLE BRICKS NOT INCLUDED
-----
Air Assist (variation based on your selection)
We chose and send the right air assist for the module that you select above. If you would like more info or any item specifics for each air assist type click here and select the specific air assist for your module. We recommend our 65L or 75L pumps for the best results on any of these air assists as we have designed them with their specs in mind.
--
Credits and Sources:
REMIXED By KGD
Z Axis Adjuster
Originally from the design (I Have permission and pay royalties)
By PLAY3Rone977
Remixed by paulmacdermot
The T-Handle wrench is designed by Kezat
Belt Tensioners
Remix of the belt tensioner by Misterguru
