Name: Ortur Laser Master 2 Ultimate Upgrade Kit
Brand: King Gubby
Price: 41600.0 HUF
Availability: InStock

The Ortur Laser Master 2 Upgrade Kit is the perfect solution for enhancing the capabilities of your standard LM2 model laser engraving machine. This professional-grade kit, made by King Gubby, includes everything you need to take your laser engraving to the next level.

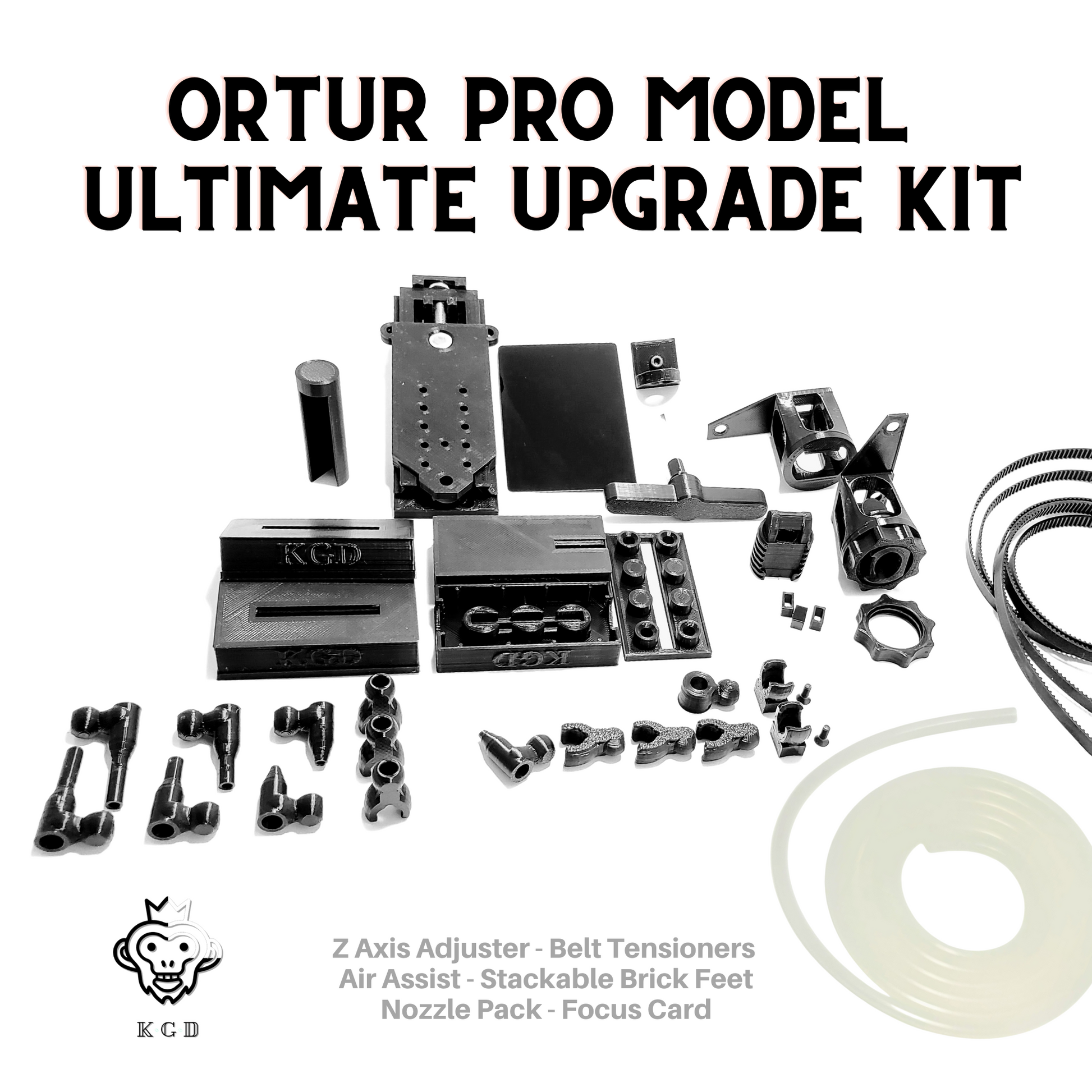

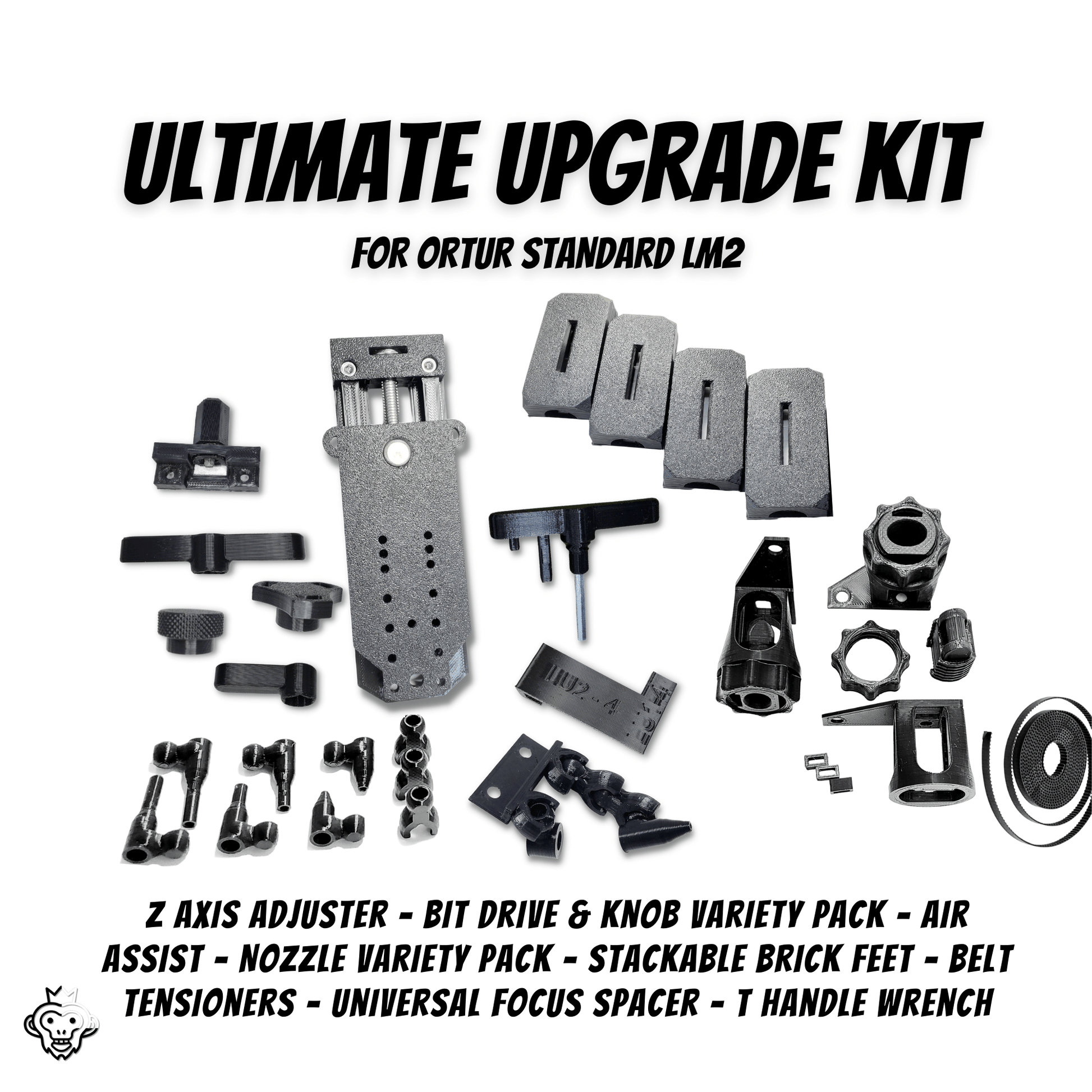

In this kit KGD has included:
- Air Assist (air hose optional)
- Nozzle Variety Pack
- Z Axis Adjuster Kit
- Bit Drive & Knob Variety Pack
- Belt Tensioners (Belts Optional)
- Stackable Brick Feet
- Universal Focus Spacer
- T-Handle Wrench
- U Block/End Stop Spacer

Don't settle for mediocre laser engraving results. Upgrade your standard LM2 model with King Gubby's Ortur Laser Master 2 Upgrade Kit today and experience the difference. With its precision adjustment capabilities and improved airflow to the nozzle, it is the perfect addition to your laser engraving setup. Order now and take the first step towards professional-grade laser engraving results.

You can find Air Pumps here:
https://kinggubby.com/products/aquavita-air-compressor-38l-mi

Item Descriptions
------

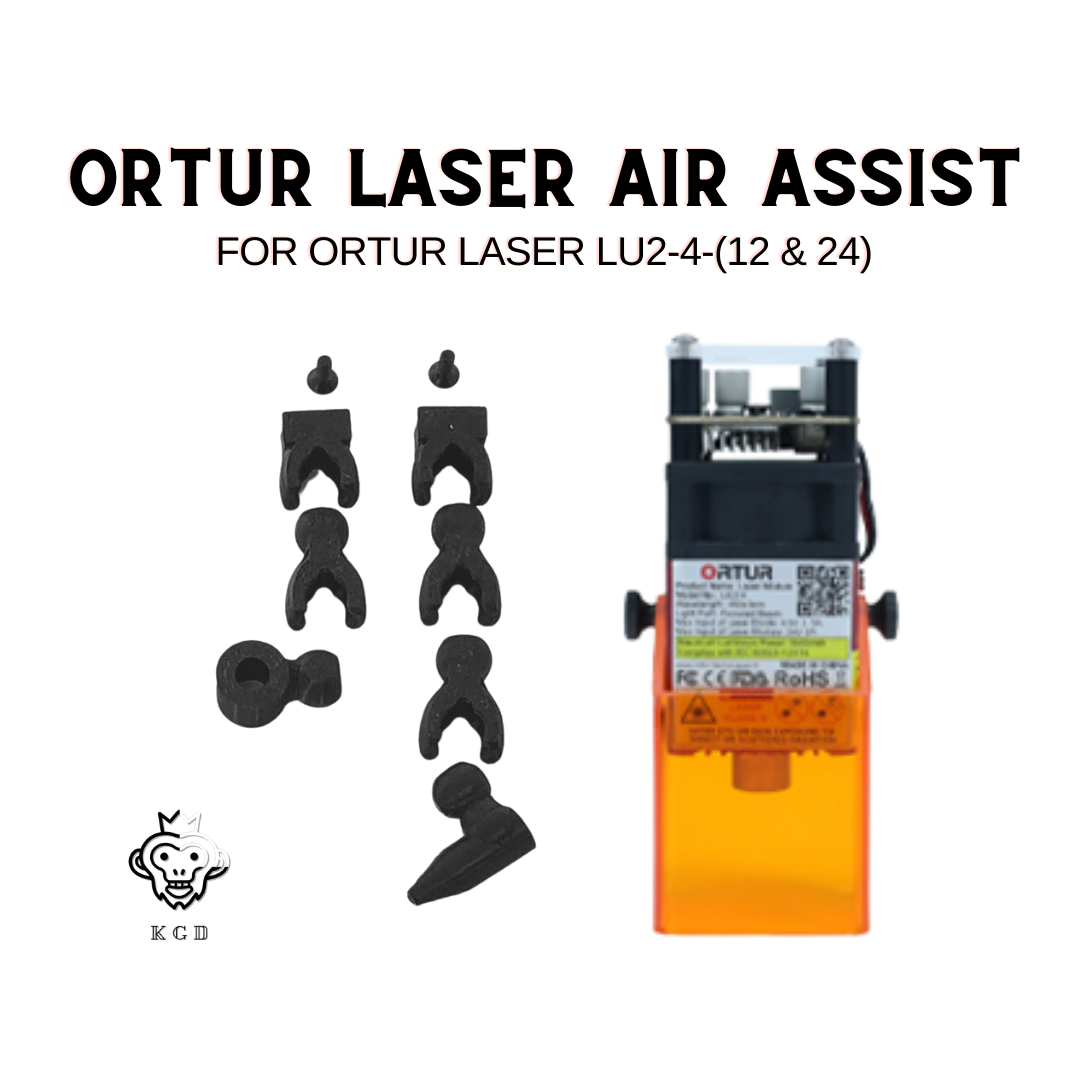

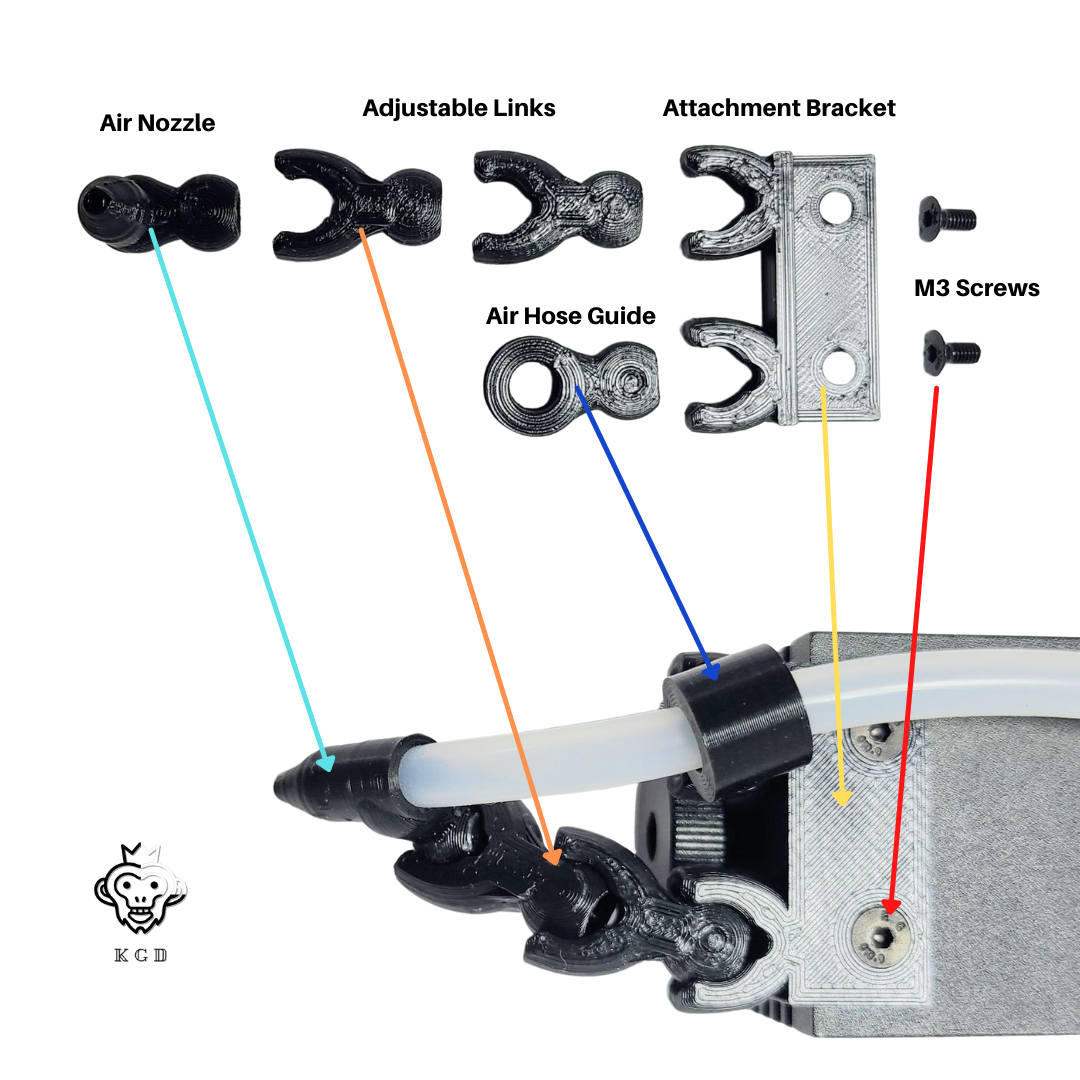

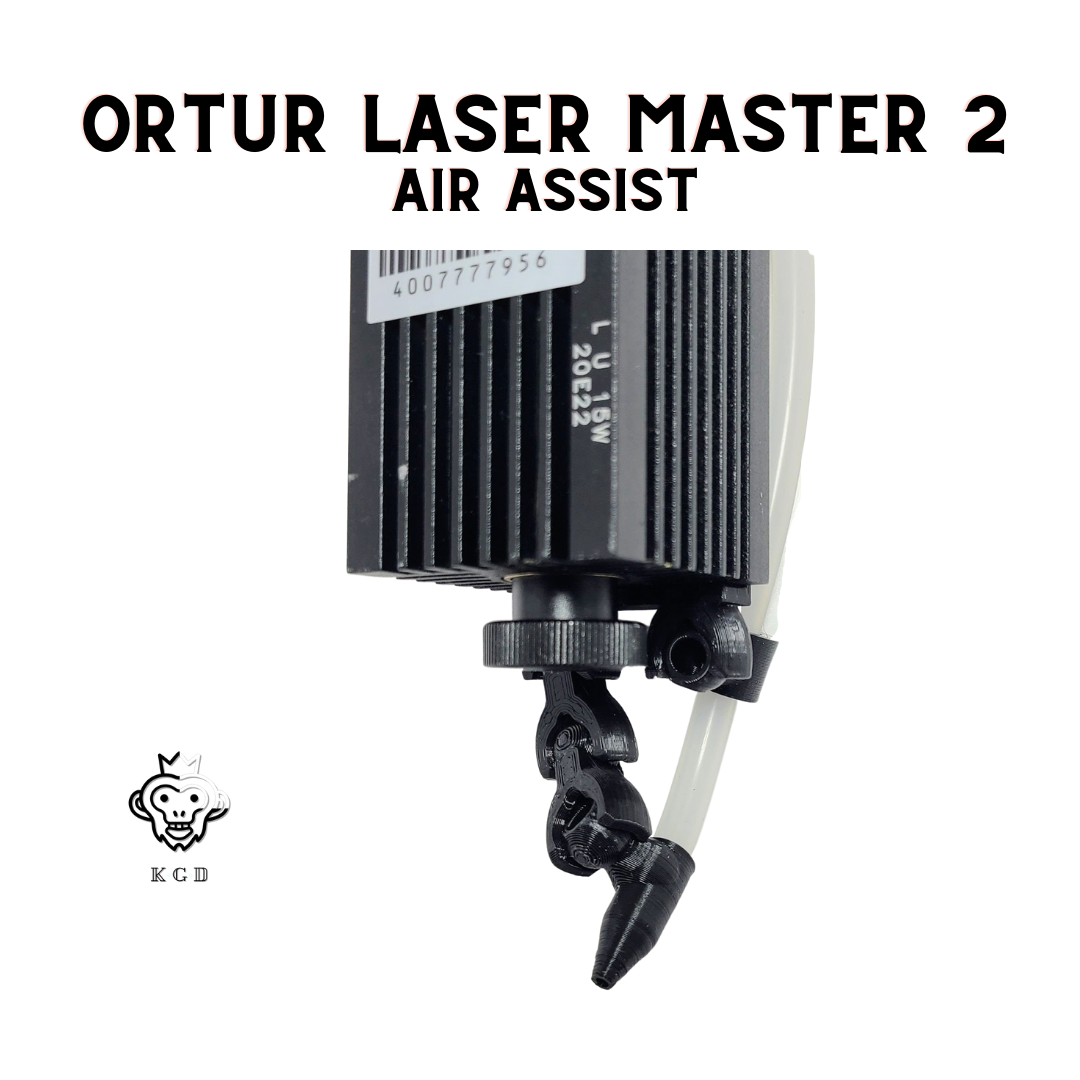

Ortur Laser Master 2 - Air Assist.

Get deeper cuts by removing the debris with air assist, cleaner engravings and overall better performance. If you have shop air that is recommend between 20-25psi. Small pumps will show great improvement as well but not as good as the larger pumps. Links Bellow.

Tools Required:
-2mm allen wrench
-2.5mm allen wrench

----- Products Included -----

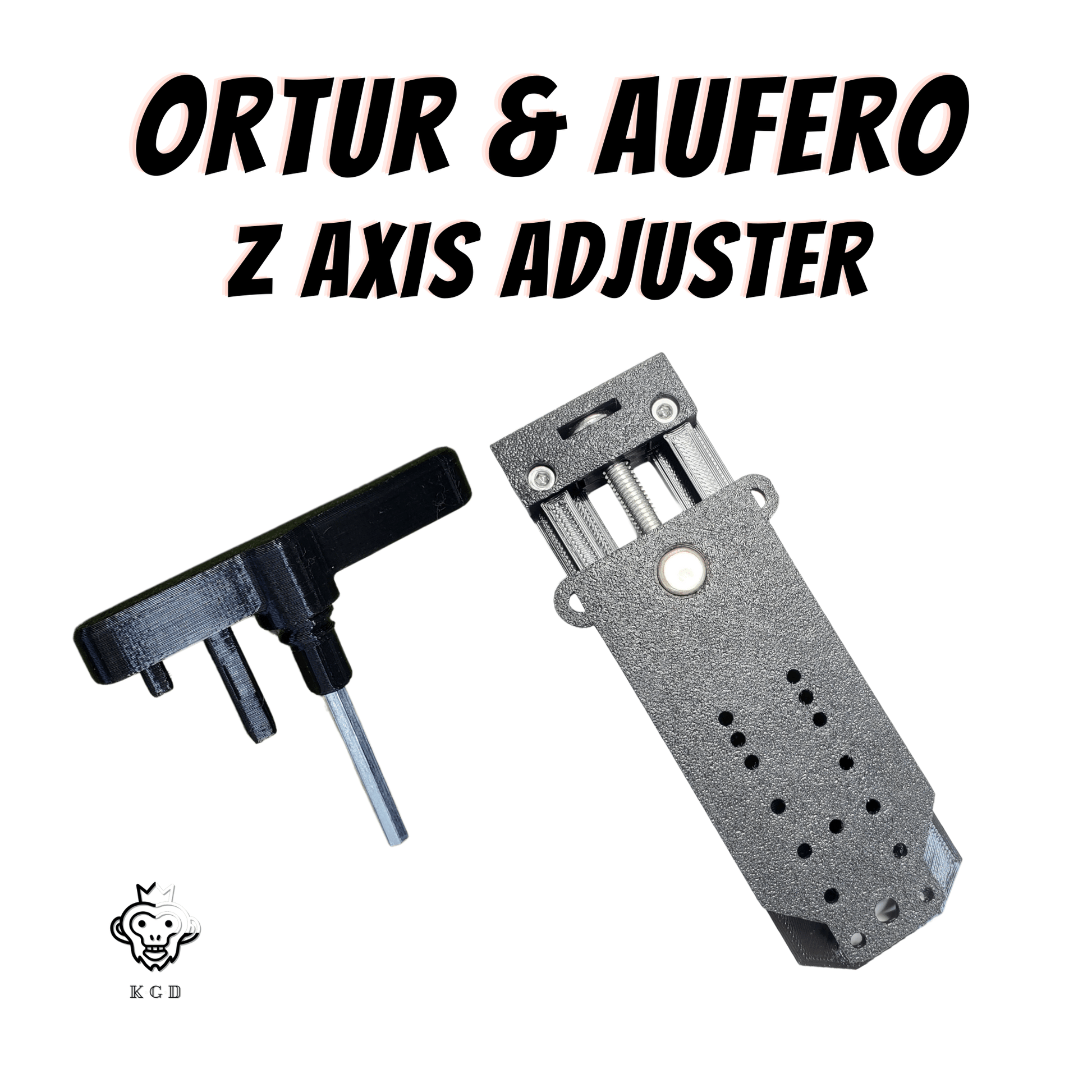

Z Axis Adjuster

Gives you 50mm of Z travel for quick and easy focus

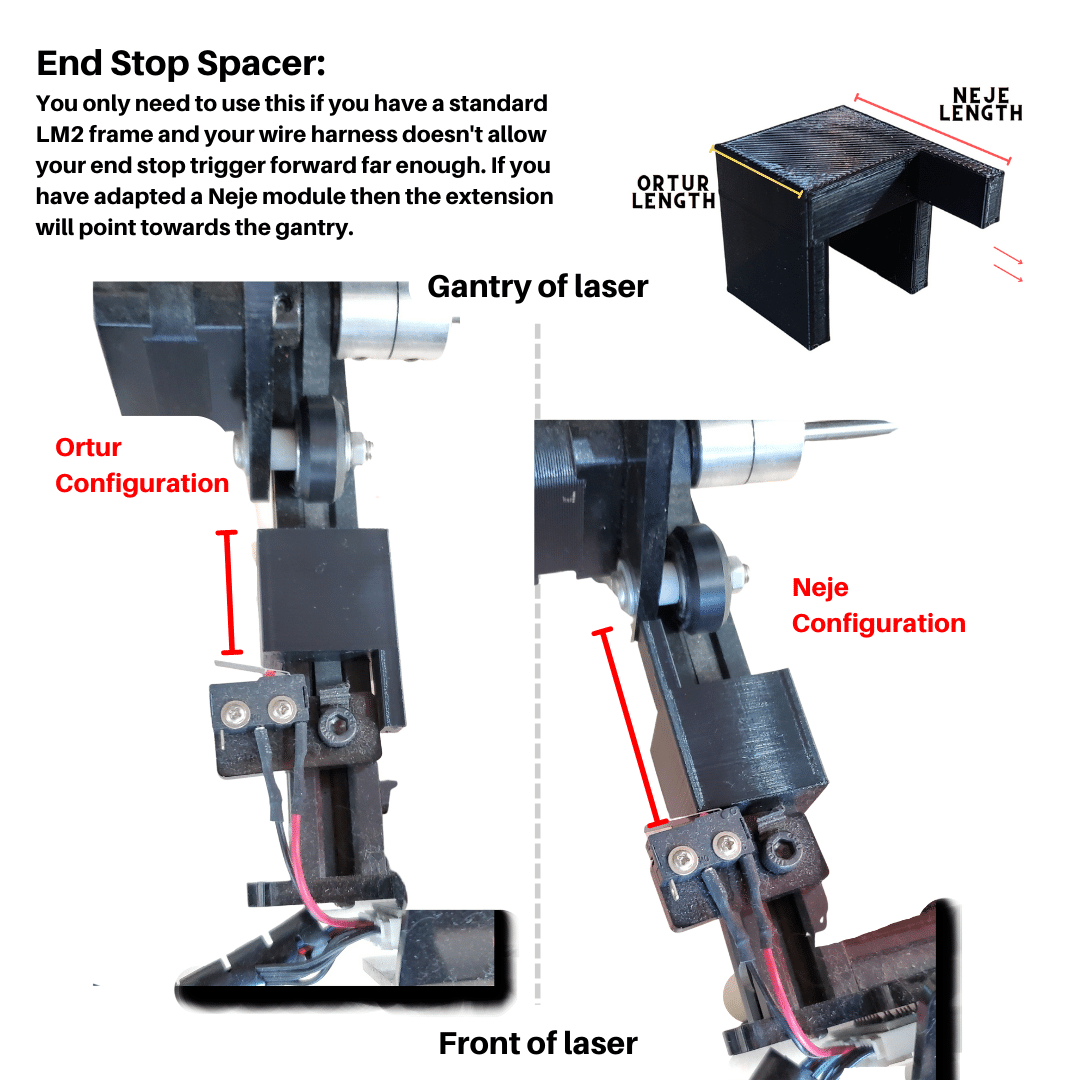

YOU NEED TO ADJUST YOU END-STOP
Includes U-block to work as a spacer (see photos)
we recommend just moving the end-stop and not using the spacer (see photo)

Install Manuals can be found here.

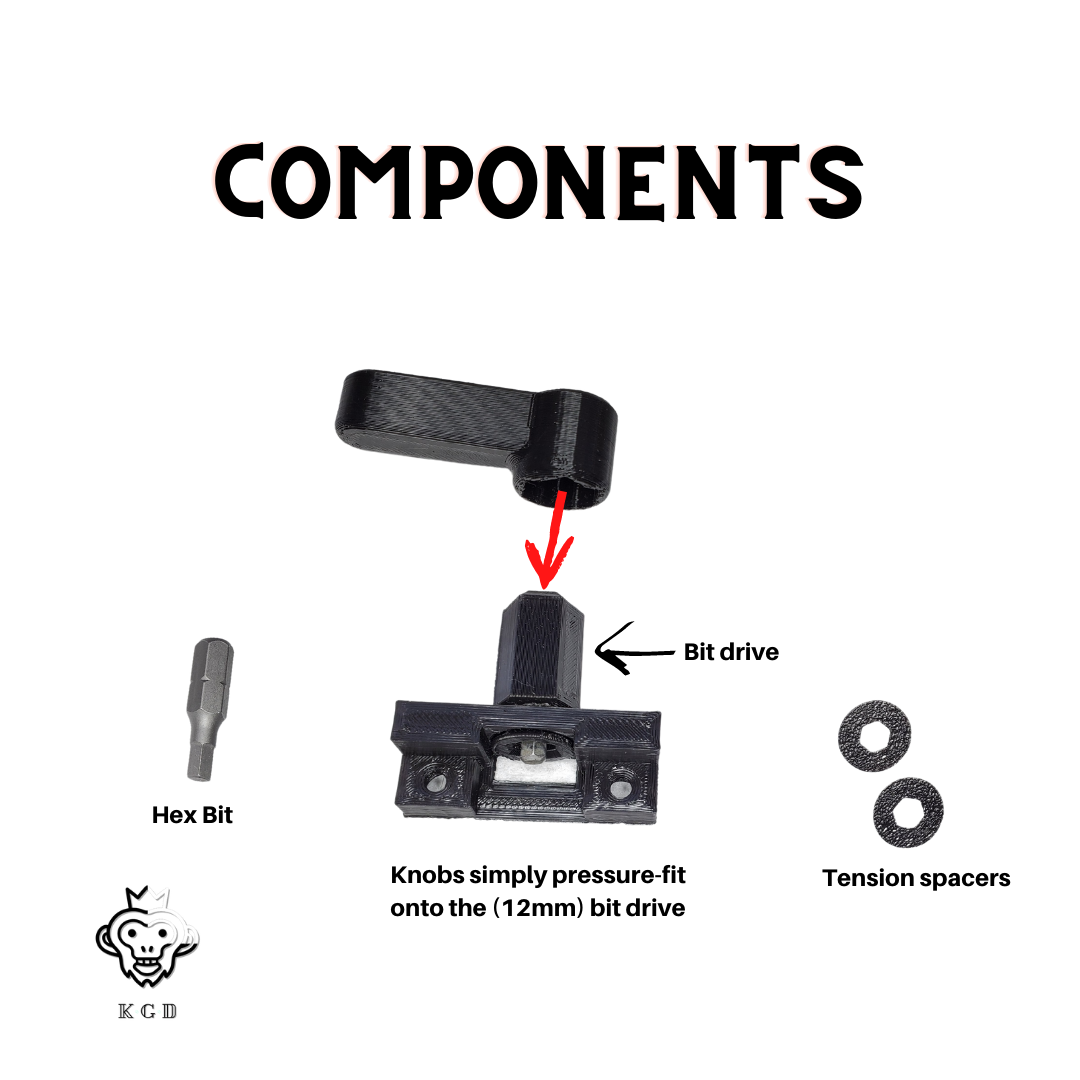

Uses 4mm allen wrench to adjust, includes T-Handle wrench that hangs on your laser's frame.

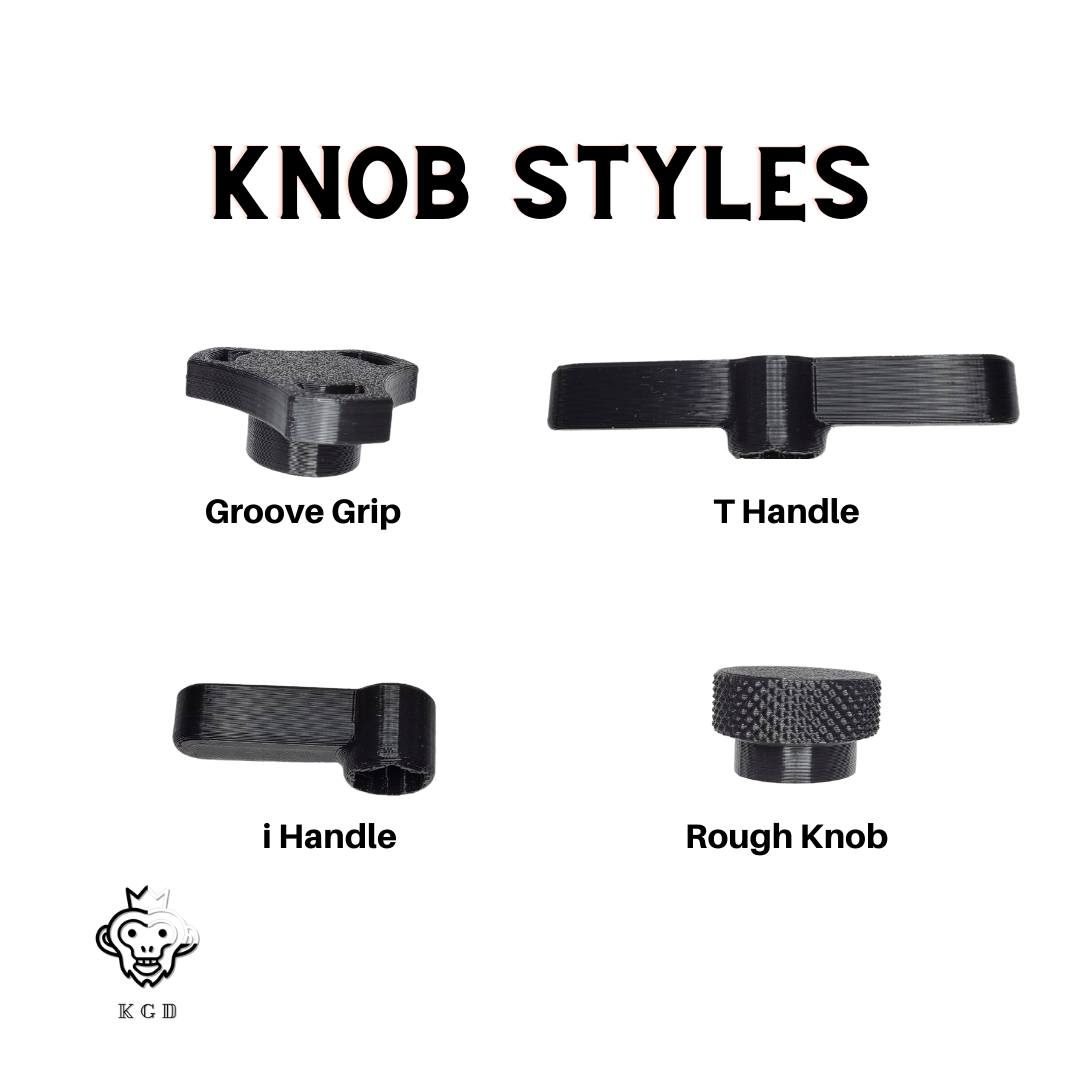

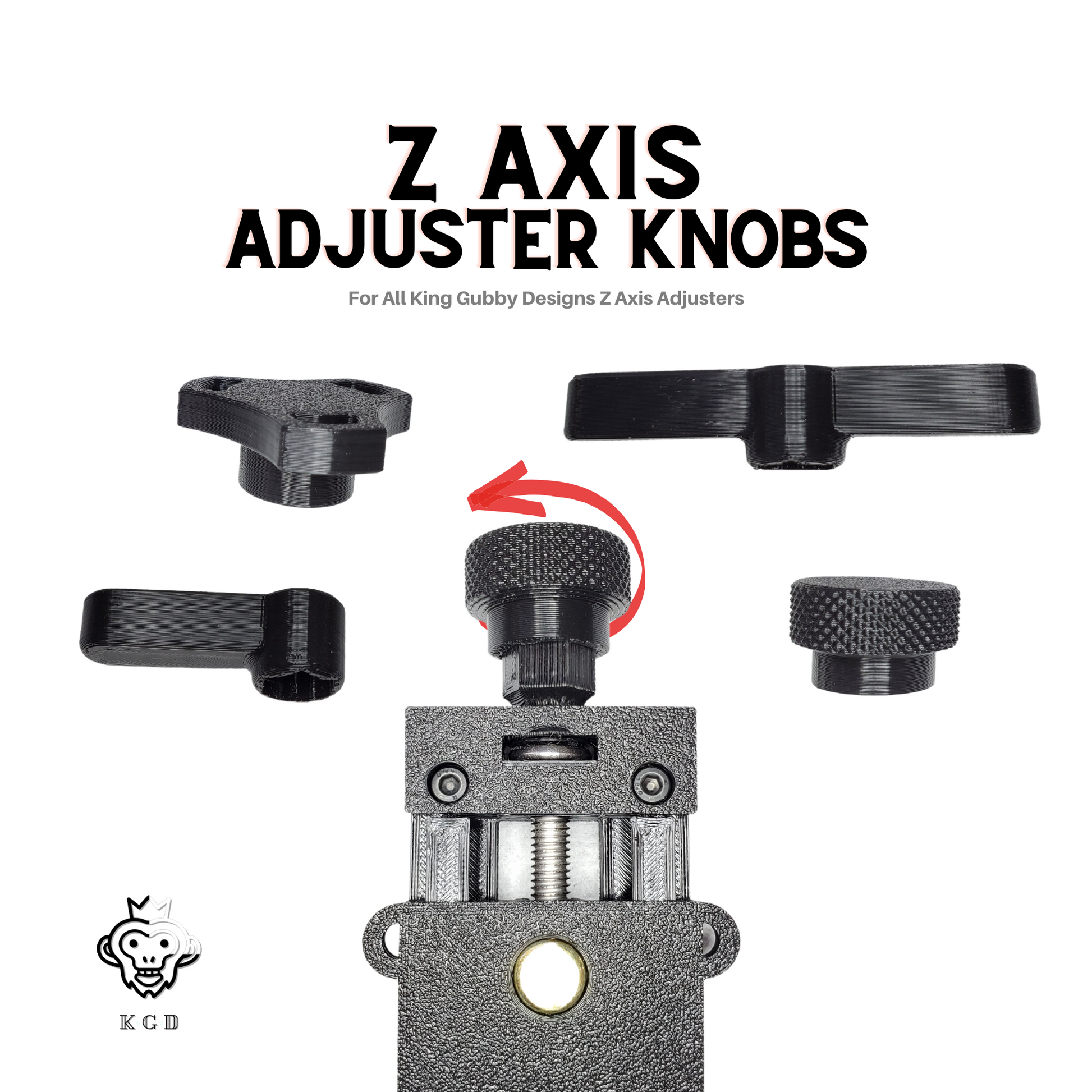

This comes a bit drive and 4 different knobs to experiment with, in case you don't like the t handle wrench option.

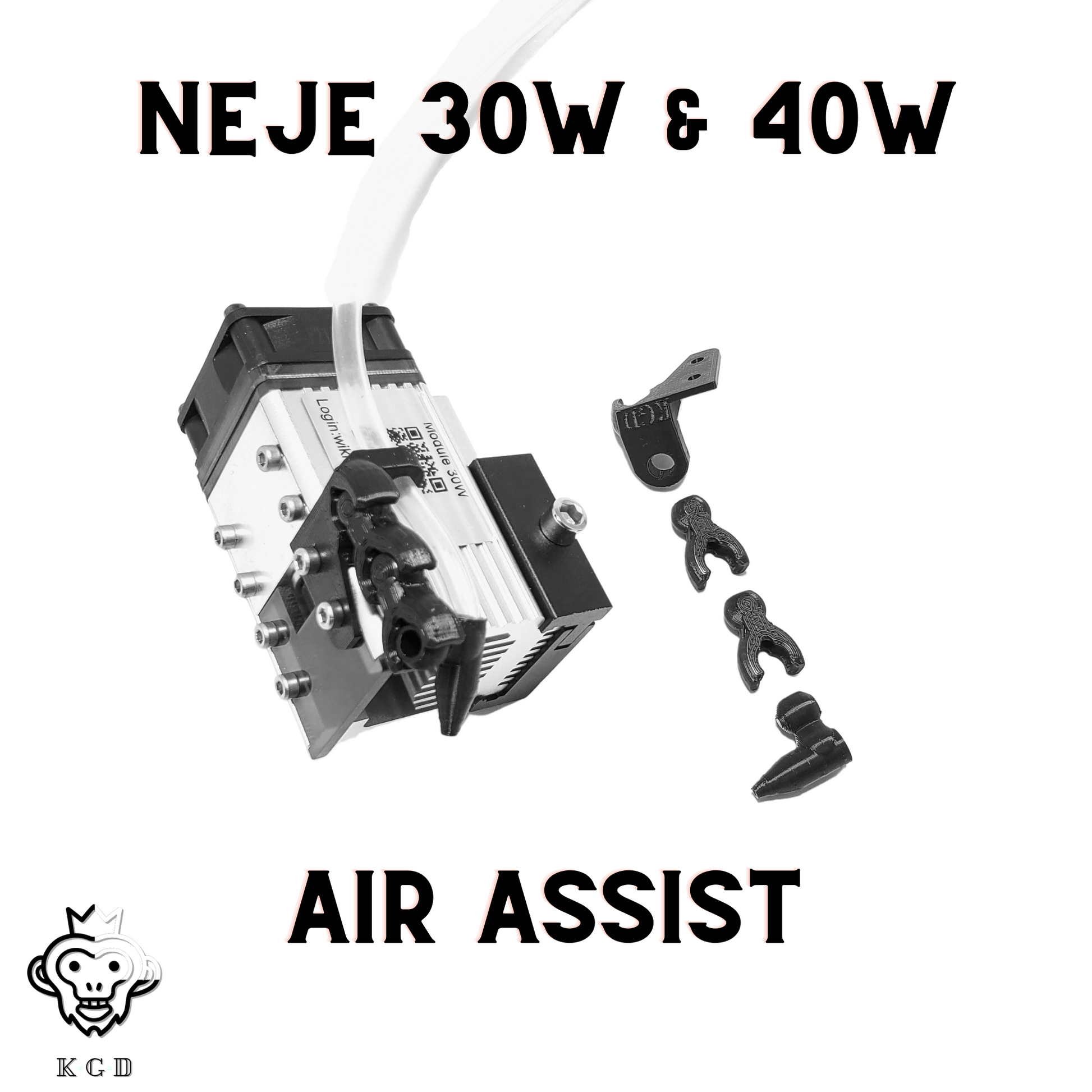

ALSO - Neje 30W, 40W, & 80W modules can be found on Amazon. With our Z Axis Adjuster, you can attach your Neje module without having to buy their frame. It will attach right to your Ortur frame. Make sure your power supply and module use the same voltage!

-----

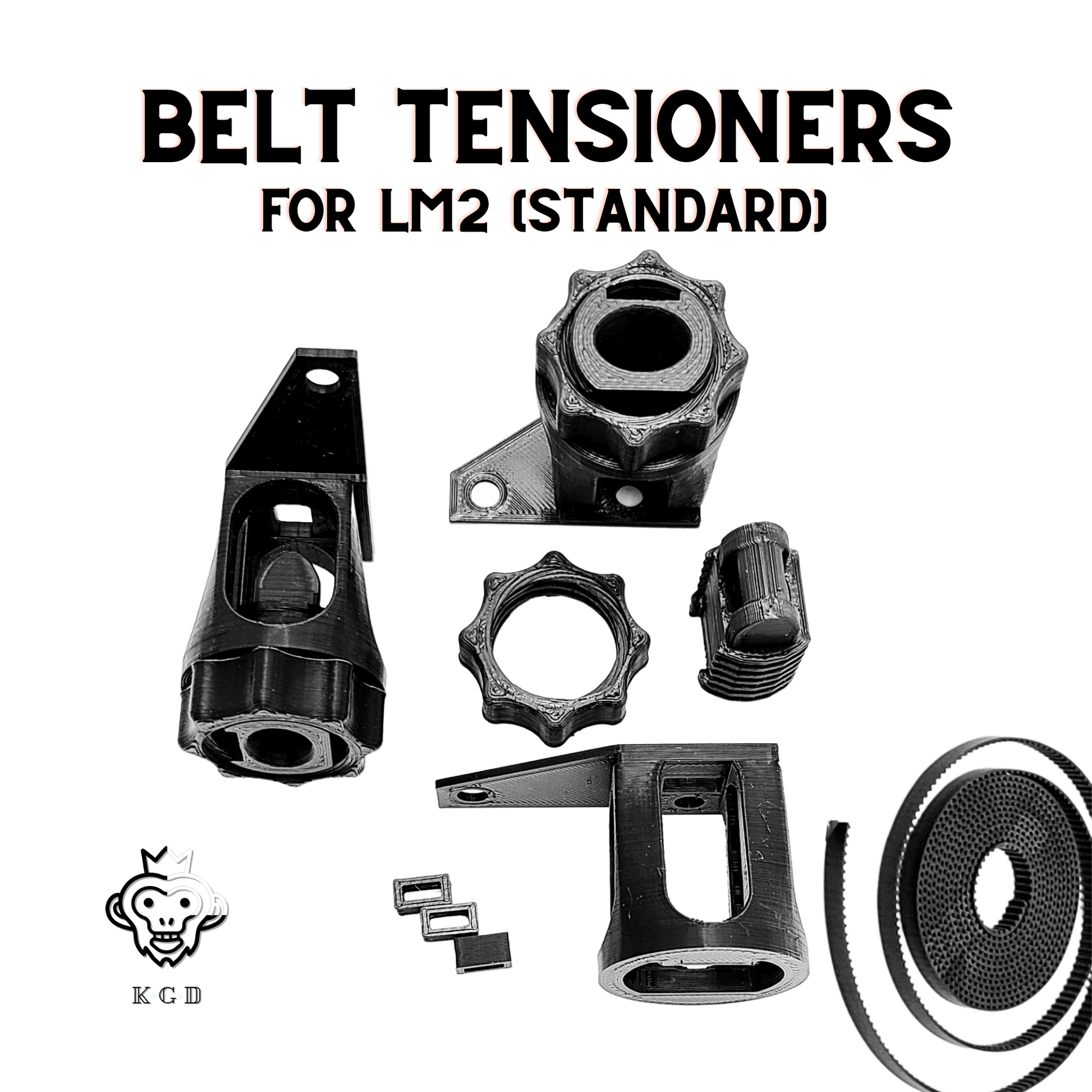

Belt Tensioners

This set of Belt tensioners for the Ortur Laser lets you adjust the belt tension on your Ortur laser engraver.

Finally, you can achieve perfect tension :)

Hand tighten or hand loosen the threaded knob to make the adjustment.

Install Video by The Edge of Tech (thanks Jim!):
https://youtu.be/67-mLMaSSb8?t=728

You may need to Replace your belts with longer belts, to see if your belts are long enough-
You need to remove the washers that previously Locked your belt on the side that you install the tensioners

X belt needs to be at least 625mm
Y belt needs to be at least 640mm
These are the minimum if you are cutting belt off a roll leave a little extra

GT2 timing belt 6mm wide is what you need

DO NOT OVER TIGHTEN YOUR BELTS!!!

-----

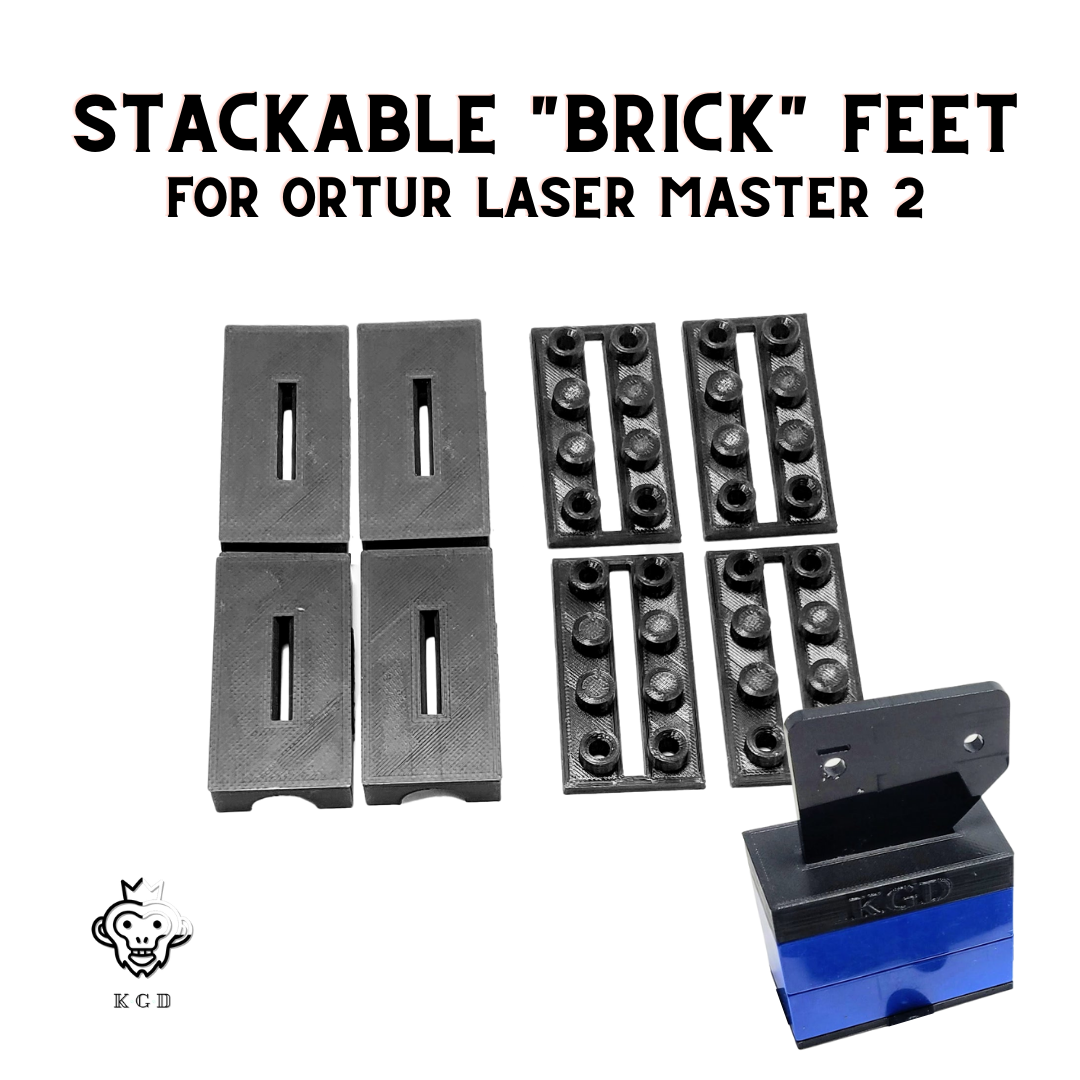

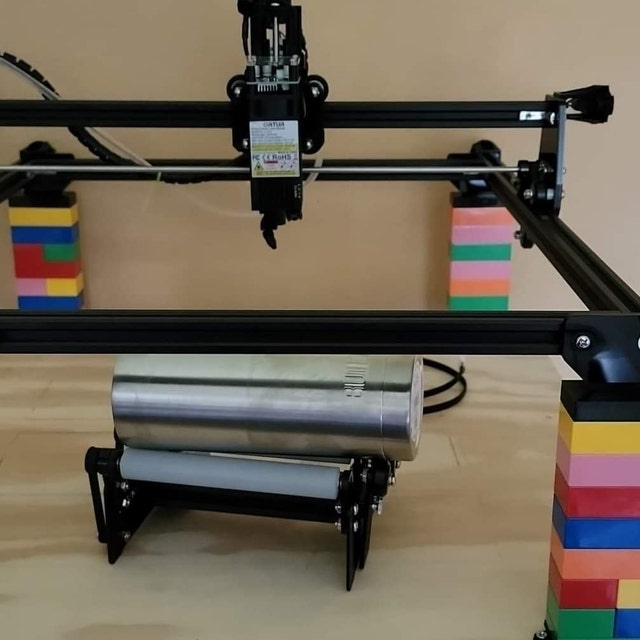

Stackable "Brick" Feet

Secure your Ortur laser engraver's acrylic feet while easily raising and lowering the height of your entire laser. With our stackable "brick" feet, just add or subtract Duplo Lego blocks to change your laser's height as needed. Super simple to use and compatible with the Duplo Lego 2x4 bricks that your child has lying around their room.

Watch the video here (the video is for the pro model bricks but shows the overall install and utility of all of our stackable brick products).

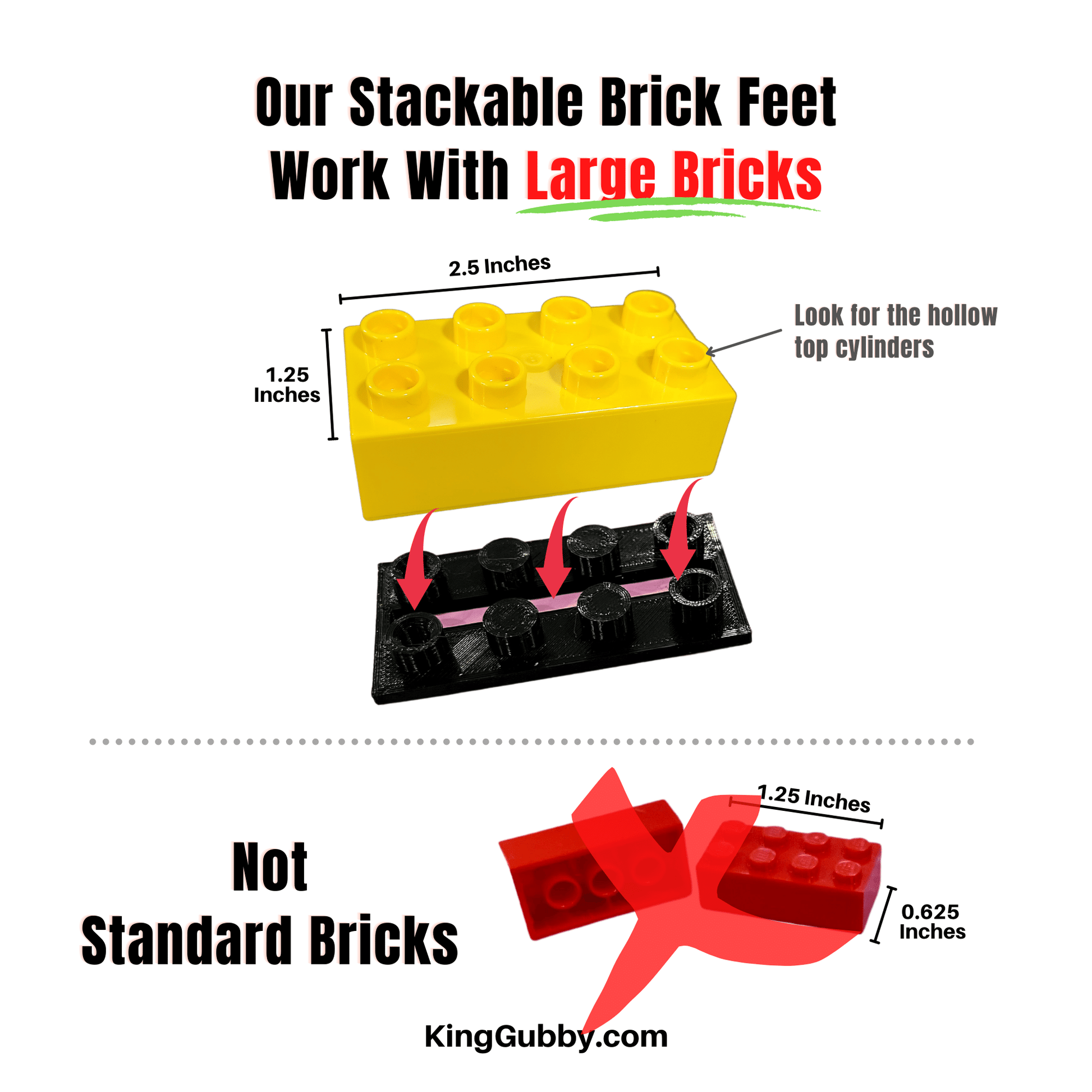

Uses 2x4 blocks (Lego Bricks not included) These work with the large style bricks.

Set of 4 feet

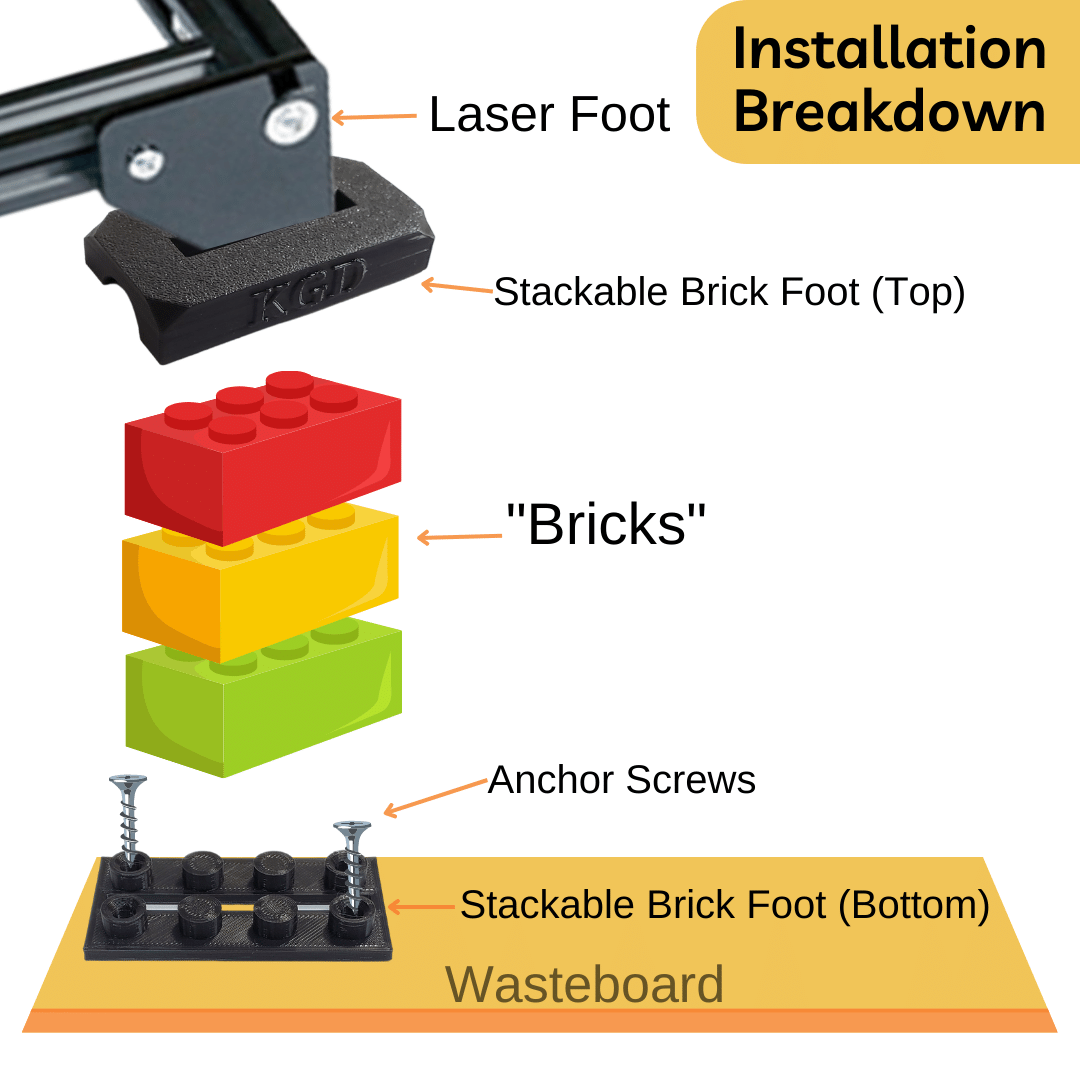

Screw bottom plates to your table or surface, add blocks/bricks to the top until you reach the desired height. Make sure all four brick stacks are even and place KGD branded top brick on top. Then place your PRO MODEL Ortur Laser Master 2's stock feet into the slits on the top.

The holes on the outside of the feet are 4mm and the 4 inside holes are 3.8mm in diameter and the plate is 3mm high

NOTE - STACKABLE BRICKS NOT INCLUDED

-----

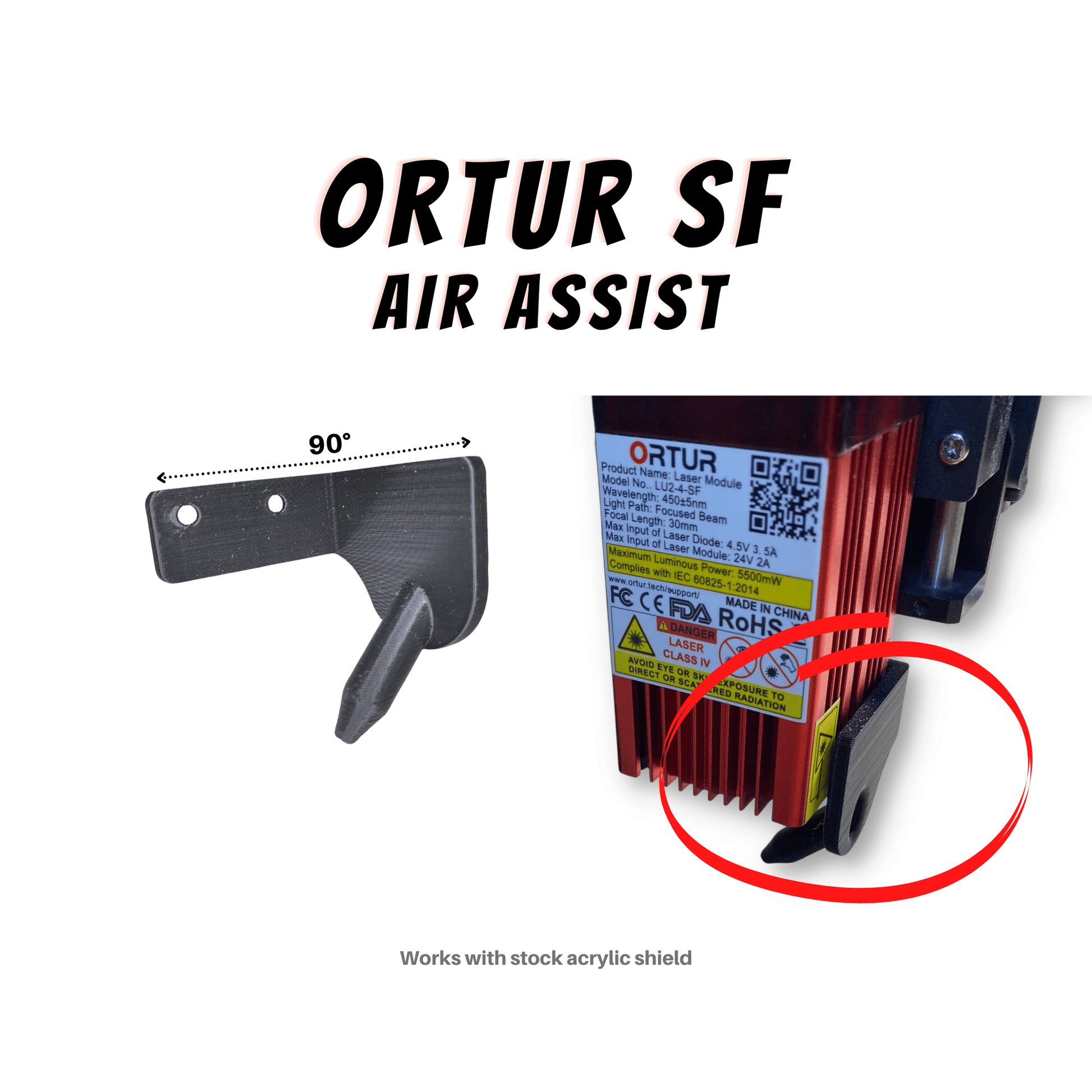

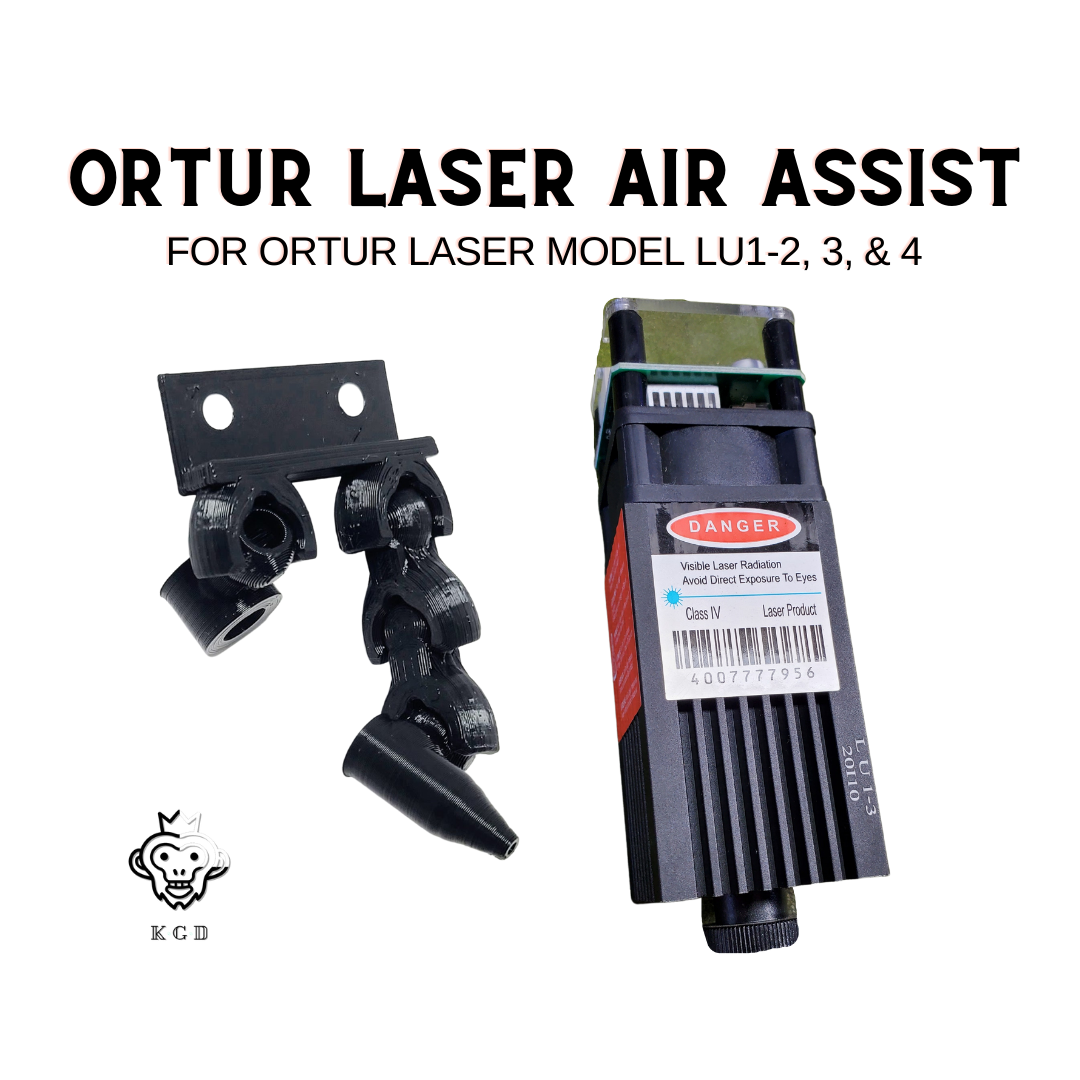

Air Assist (variation based on your selection)

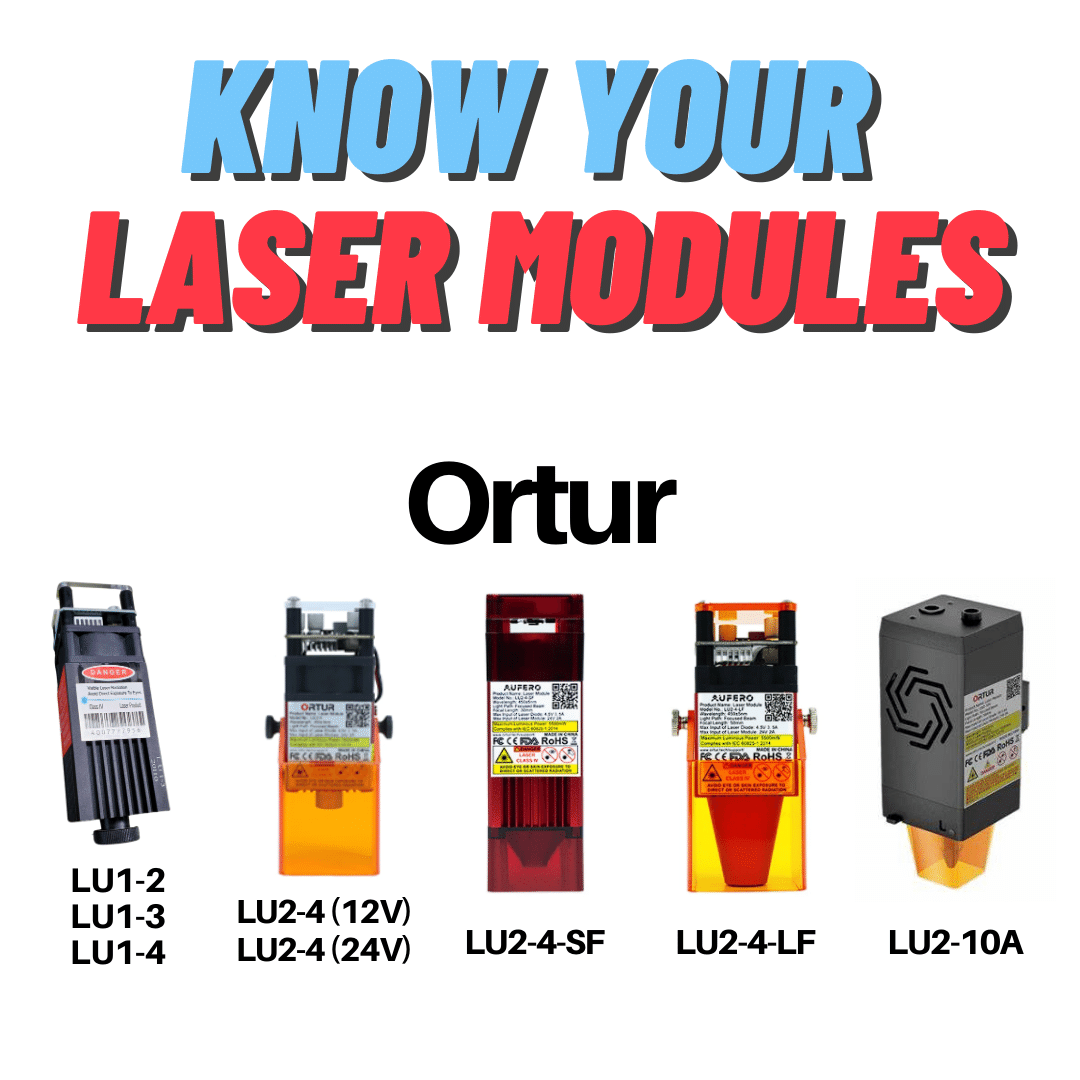

We chose and send the right air assist for the module that you select above. If you would like more info or any item specifics for each air assist type click here and select the specific air assist for your module. We recommend our 65L or 75L pumps for the best results on any of these air assists as we have designed them with their specs in mind.

-----

--
