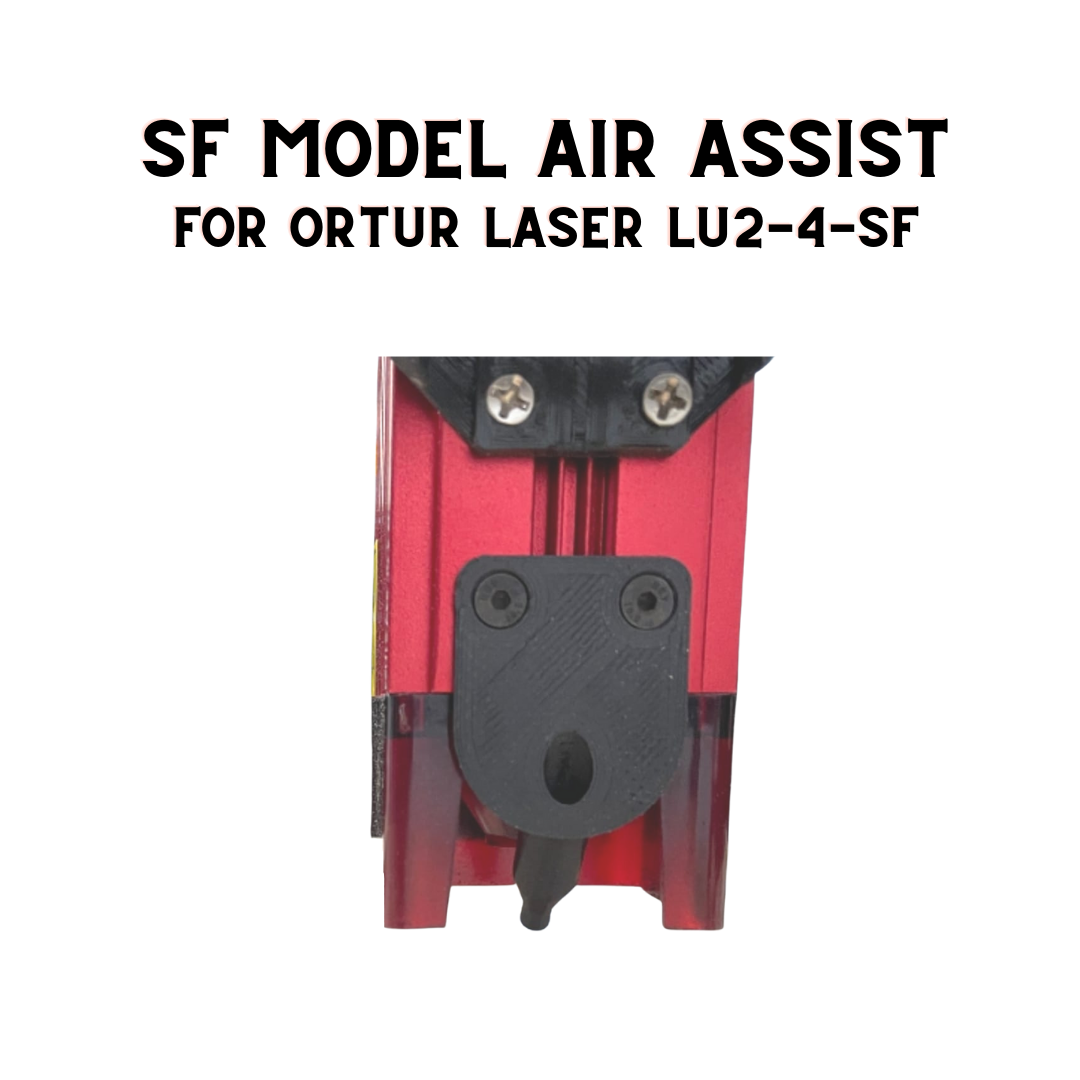

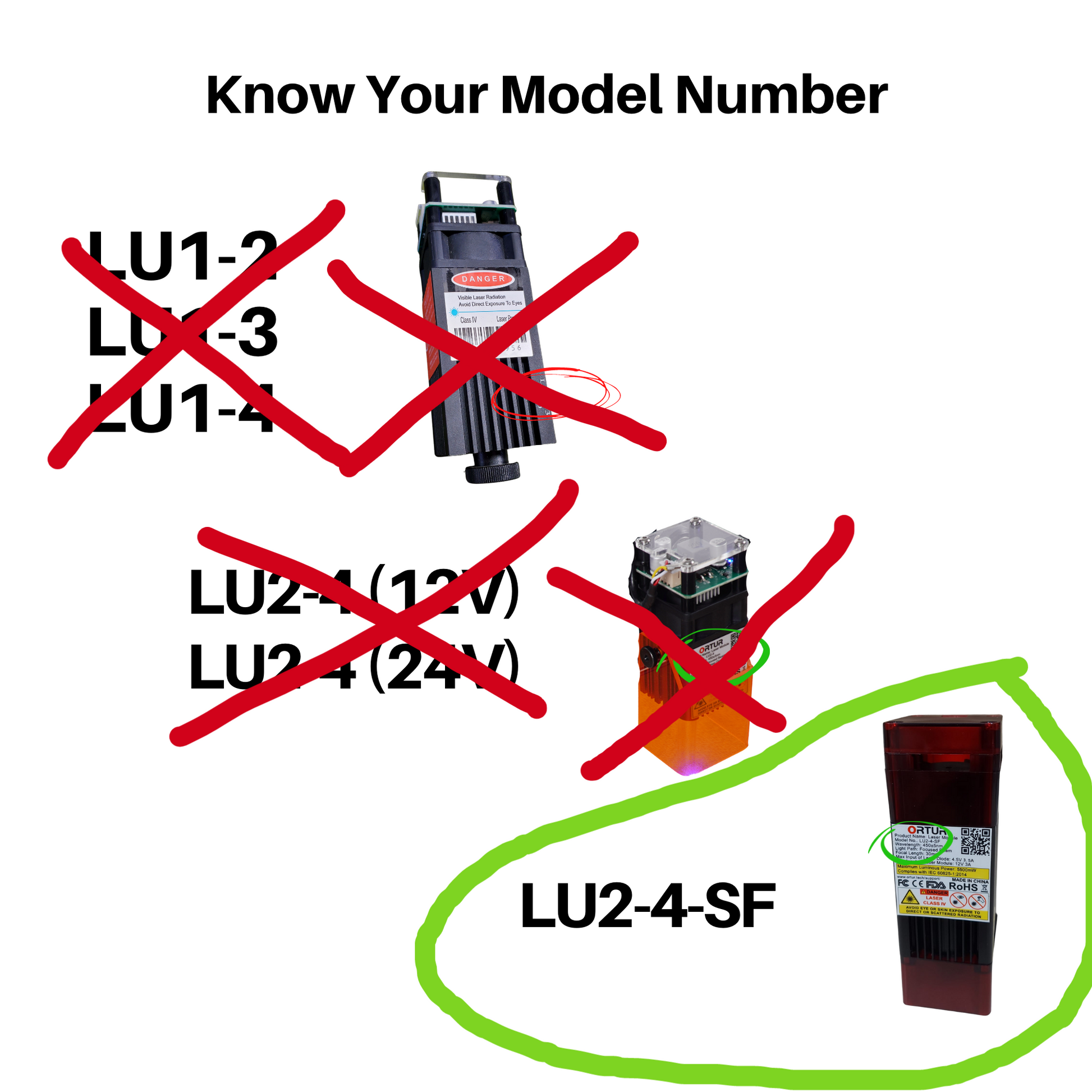

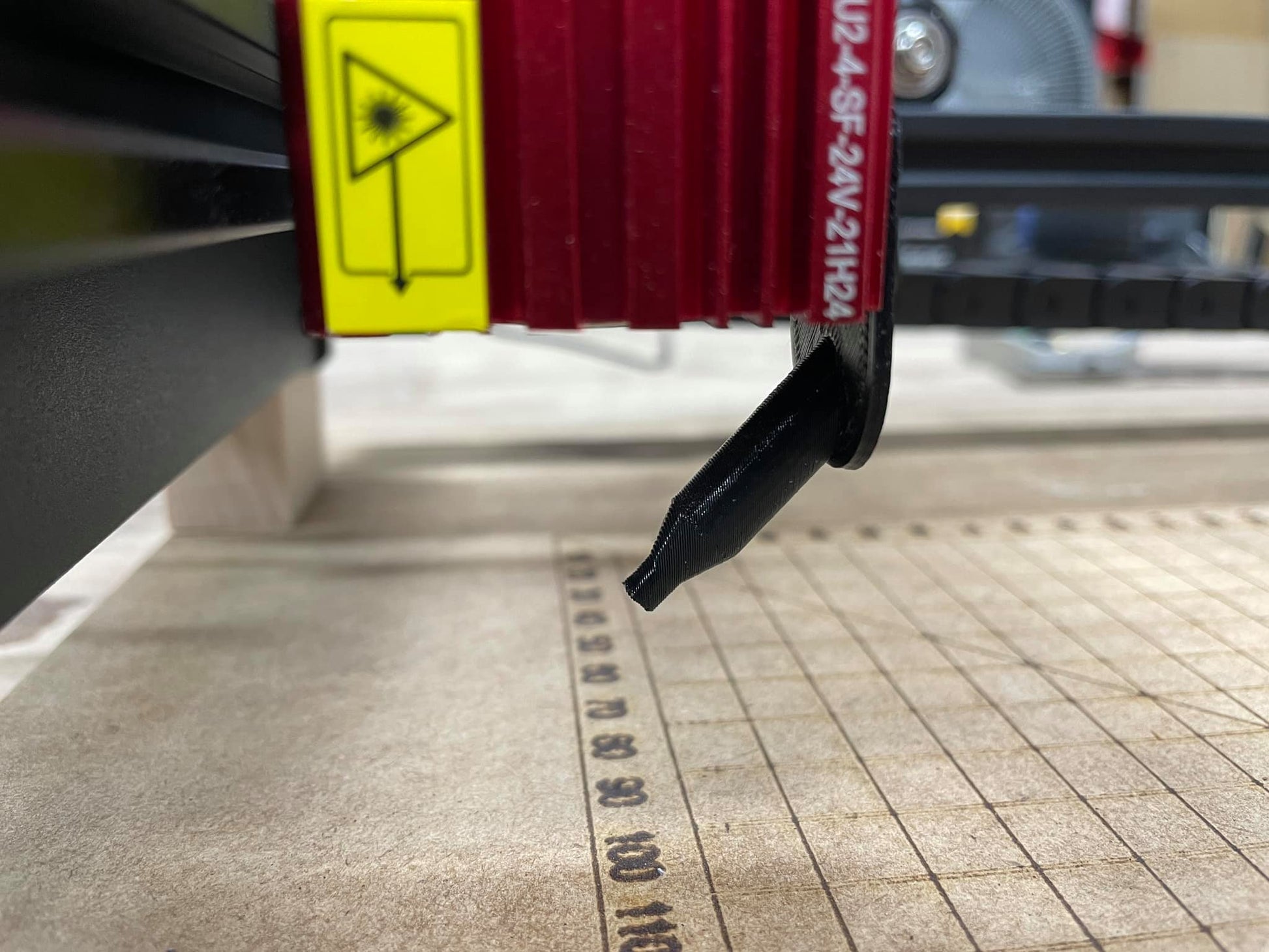

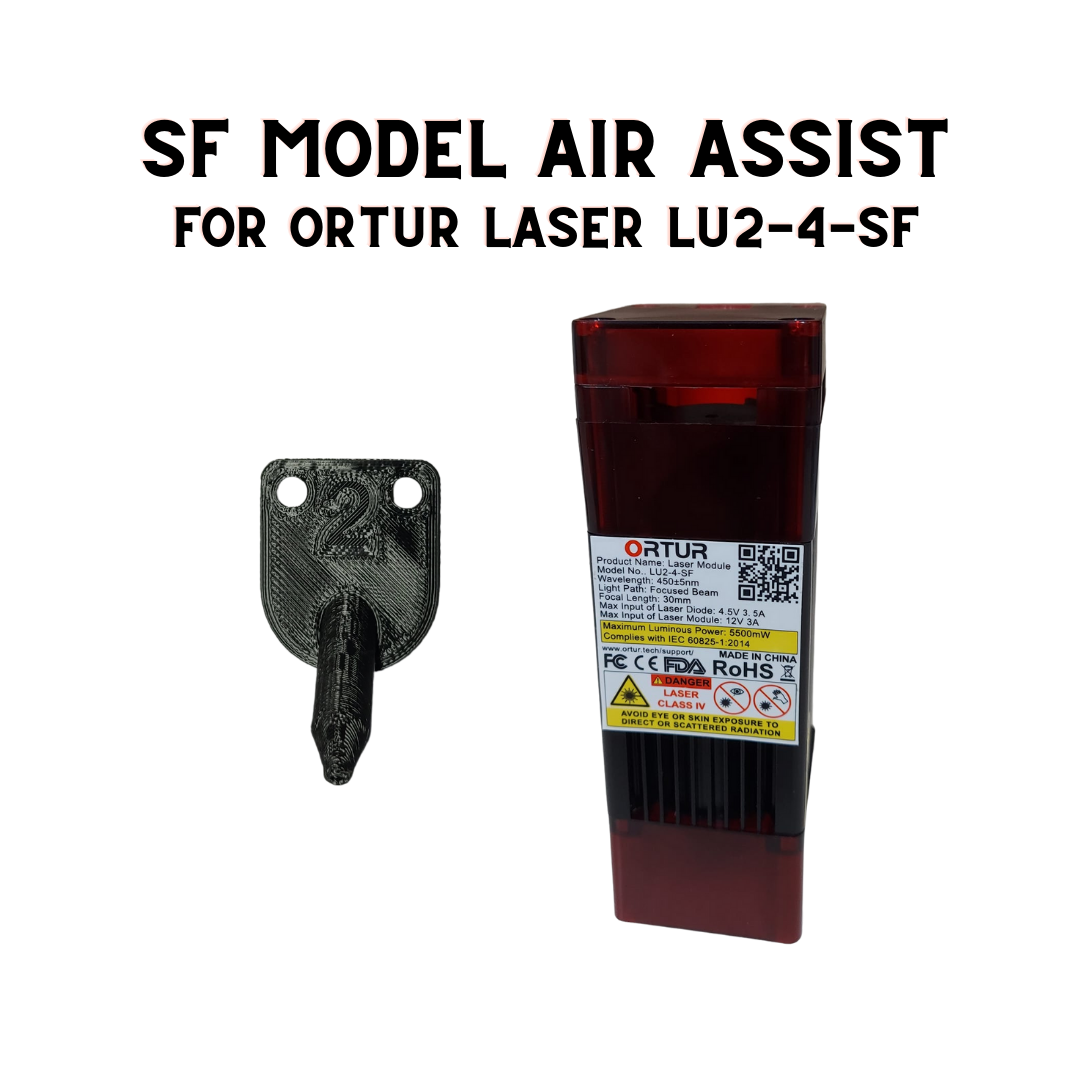

Ortur Laser Master 2 SF (Short Focus) Model Air Assist. This air assist is designed for the short focus/lens model (LU2-4-SF). It attaches to the side of the module with the opening in the acrylic and is perfectly positioned without any need to tinker. Attach it and forget it. No more adjustments or aligning your air assist.

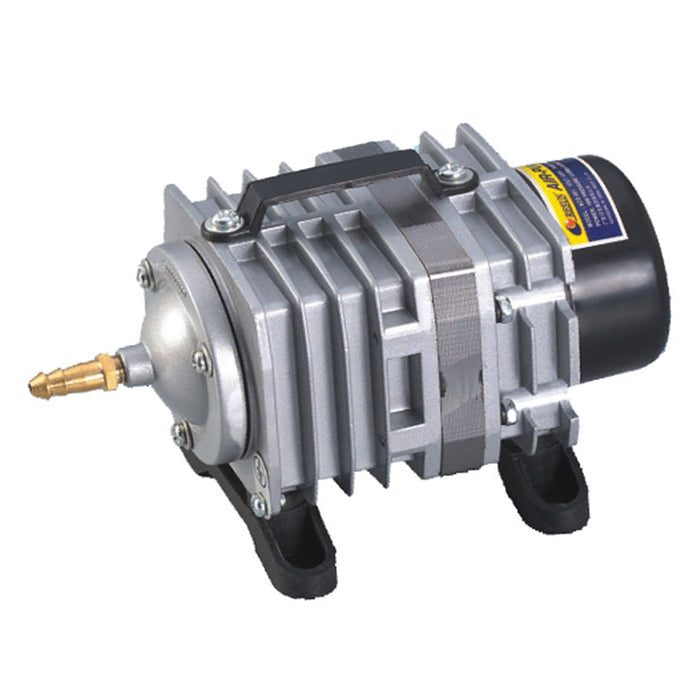

Air assists help you get deeper cuts by removing the debris from your burn surface. They also help with cleaner engravings and overall better performance. If you have shop air, we recommend between 20-25psi. Small fish pumps will show some improvement as well but not as good as the commercial pumps we have available in this listing.

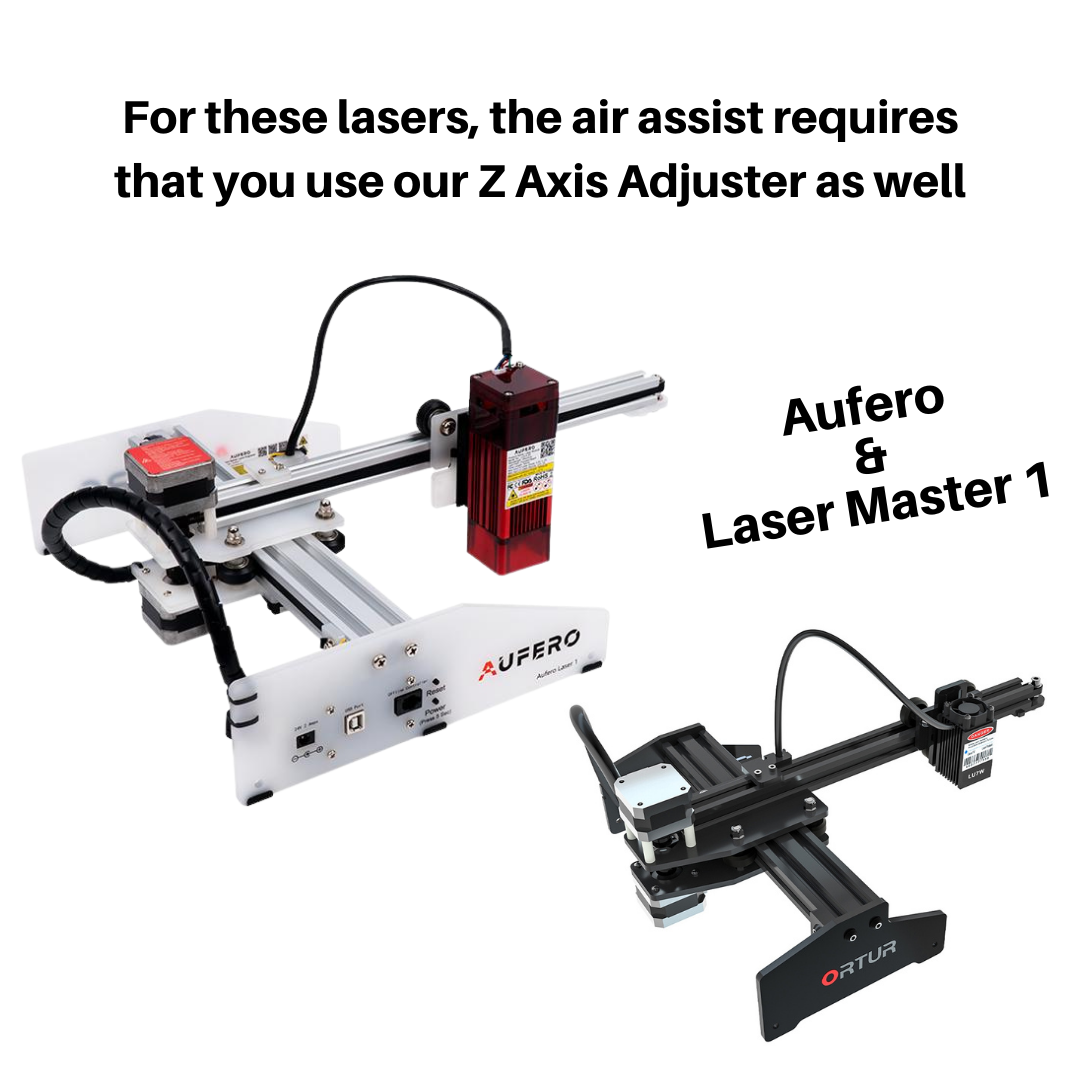

IF YOU HAVE A LASER MASTER 1 MODEL OR AN AUFERO LASER 1, YOU NEED OUR Z AXIS ADJUSTER TO ATTACH THIS AIR ASSIST.
Tools Required:
2mm allen wrench
Install:

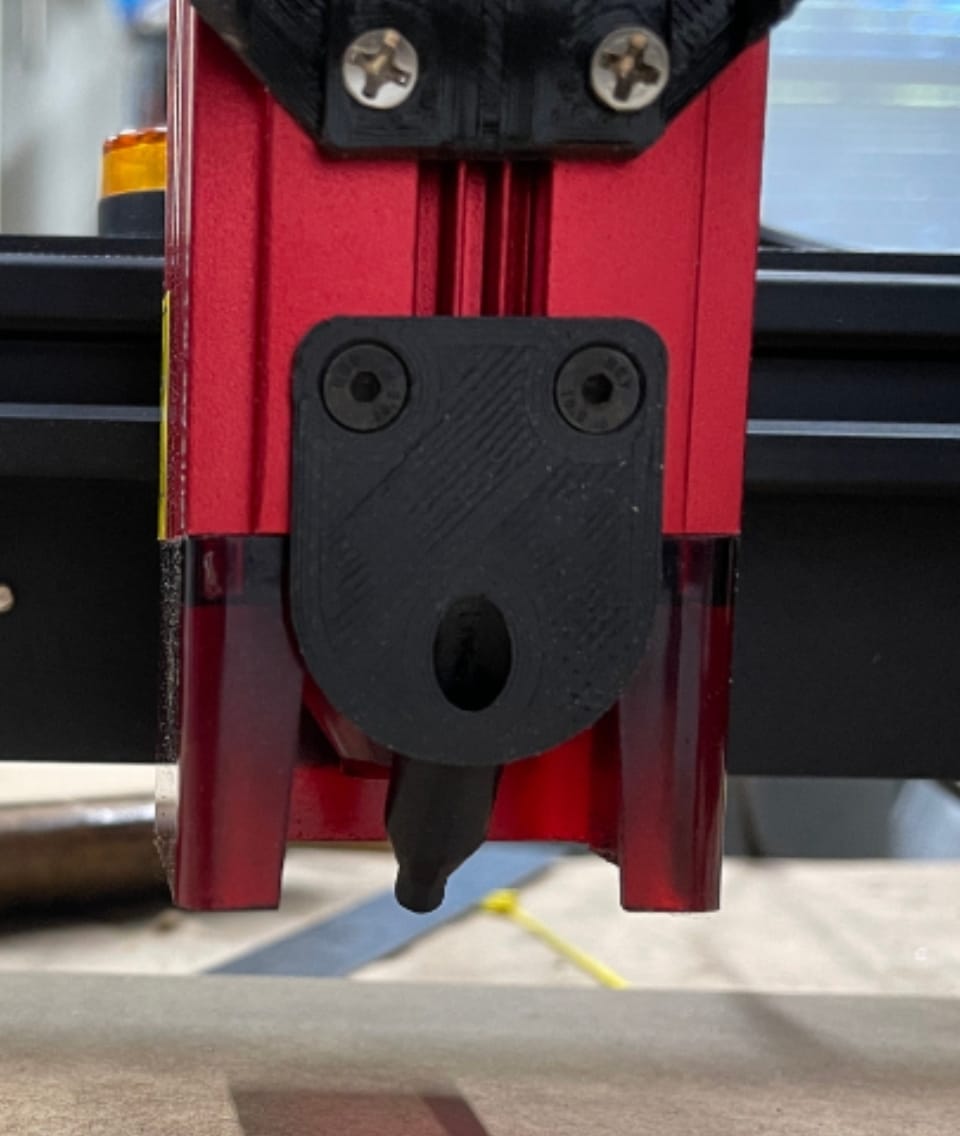

- Attach plate to module with provided M3 screws (on side of module that acrylic shield does not cover)
- Feed King Gubby Design's air hose through the back of the nozzle (attached to attachment plate) and run the hose up along your wire harness and zip-tie along the way.
- That's it!!
